Leak Detection Solenoid: Service and Repair

Pressure Control Solenoid Valve

REMOVAL

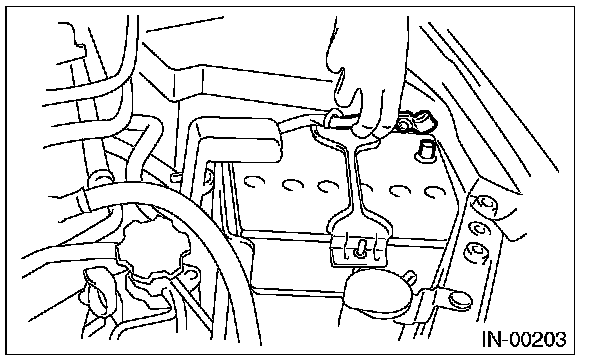

1. Disconnect the ground cable from battery.






2. Lift up the vehicle.

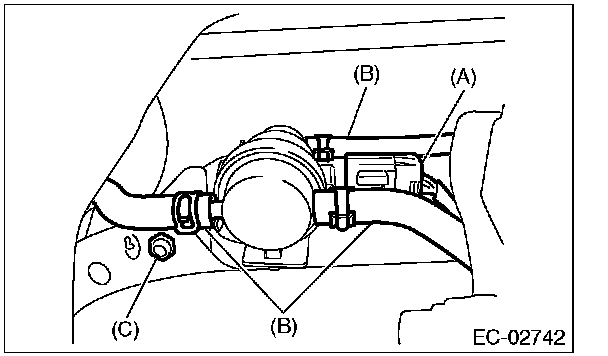

3. Disconnect connector (A) and evaporation hose (B) from the pressure control solenoid valve.
4. Remove the nut (C) securing the bracket to the fuel tank and remove the pressure control solenoid valve together with the bracket.

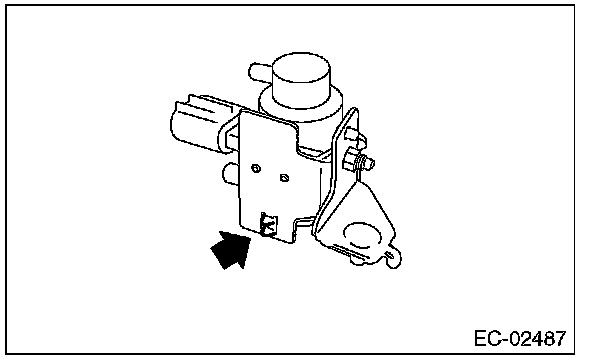

5. Remove the pressure control solenoid valve from the bracket.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: 7.35 N.m (0.7 kgf.m, 5.4 ft.lb)
