Antitheft Antenna: Service and Repair

IMMOBILIZER ANTENNA

REMOVAL
1. Disconnect the ground cable from battery.

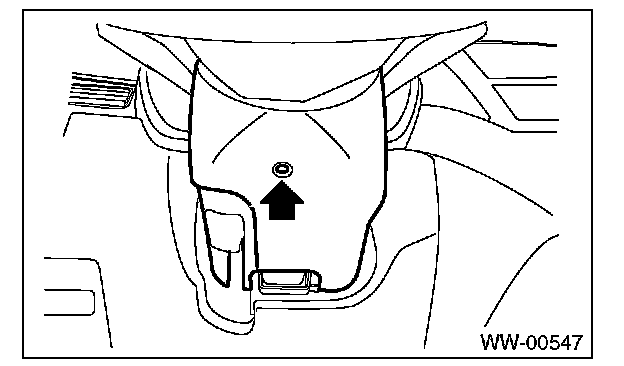

2. Remove the screws and remove the steering column cover lower.






3. Remove the harness cover lock.

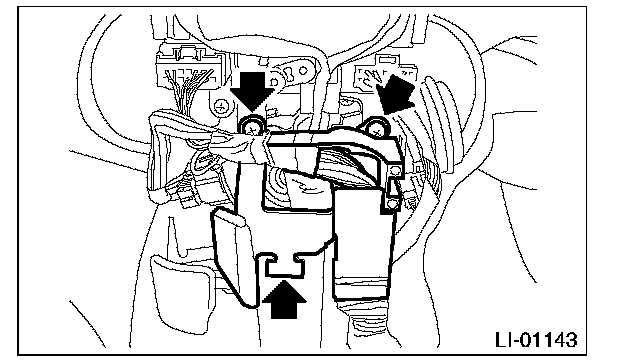

4, Remove the screws and detach the knee protector.

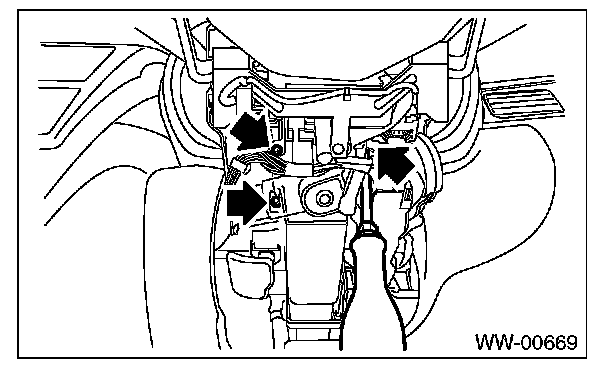

5. Remove the screws and remove the steering column cover upper.






6. Remove the instrument panel lower cover.

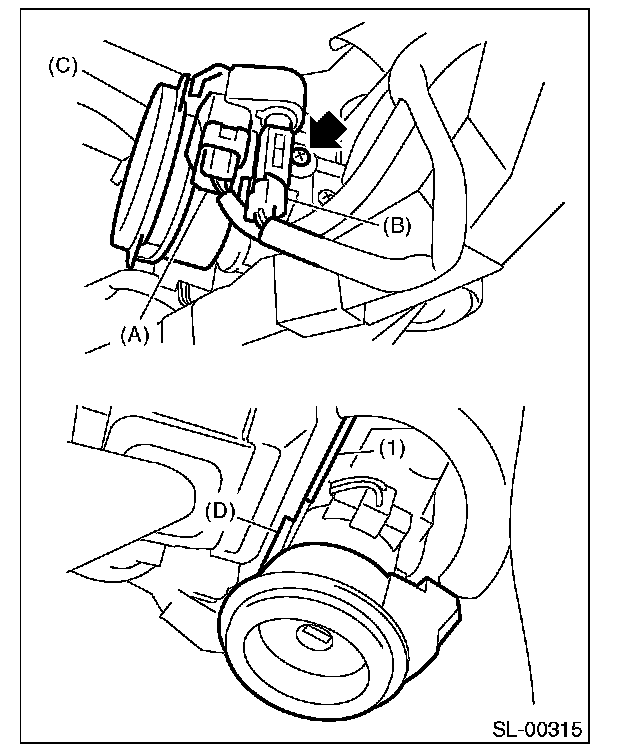

7. Disconnect the immobilizer antenna harness connector (A) and ignition switch lighting harness connector (B).
8. Loosen the screw and release the lock (D) at opposite side using flat tip screwdriver (1), and then detach the immobilizer antenna (C).

CAUTION: Do not apply excessive force to remove the immobilizer antenna and lock. Otherwise they may be broken because those parts are the products made of a plastic.






INSTALLATION
Install each part in the reverse order of removal.
