Outer Mirror

Outer Mirror


Mirror:






REPLACEMENT

CAUTION:
- When removing the mirror, be careful not to damage the back surface of mirror with a flat tip screwdriver.
- When installing the mirror, insert the fitting area securely.

1. Face the mirror upward.
2. Disconnect the ground cable from battery. (Model with mirror heater)

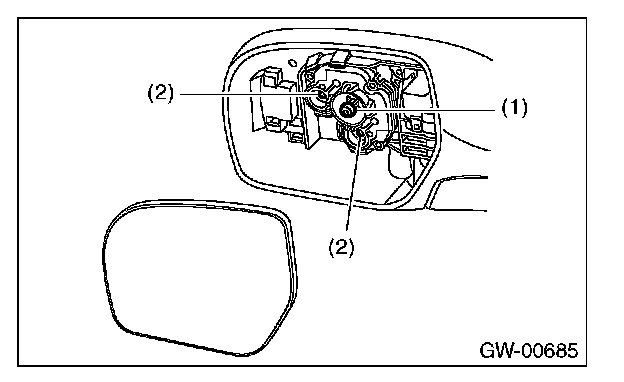

3. Lift the lower part of the mirror and the outer side, and remove fitting (1) and (2).







4. Disconnect the mirror heater connector. (Model with mirror heater)







5. Attach a mirror to the fitting area (1), and attach the worm to the fitting area (2).

CAUTION: When installing the mirror, insert the worm securely.
