Ambient Temperature Sensor / Switch HVAC: Service and Repair
AMBIENT SENSOR (AUTO A/C MODEL)
REMOVAL 1.
Disconnect the ground cable from the battery;
2.
Disconnect the ambient sensor connector.
3.

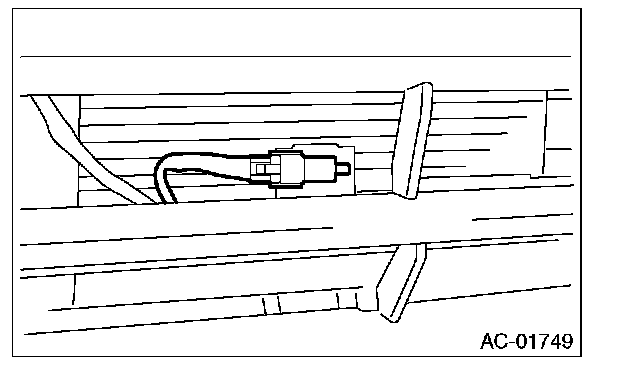

Remove the ambient sensor from the radiator lower panel.
INSTALLATIONInstall each part in the reverse order of removal.
