Blower Motor Unit Assembly

BLOWER MOTOR UNIT ASSEMBLY

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the instrument panel lower.
3. Turn over the floor mat near the engine ECM protect cover.

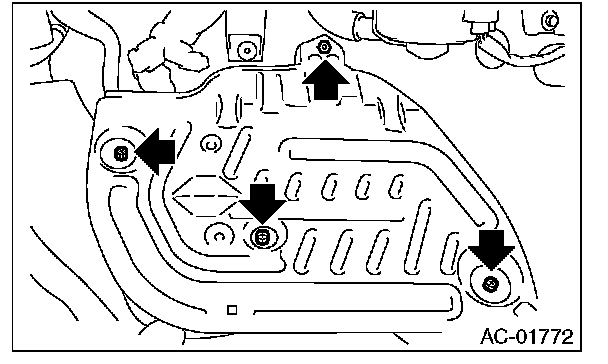

4. Remove the bolts and nut, and then remove the engine ECM protect cover.






5. Disconnect the blower motor relay and blower motor connector.
6. Remove the relay holder.

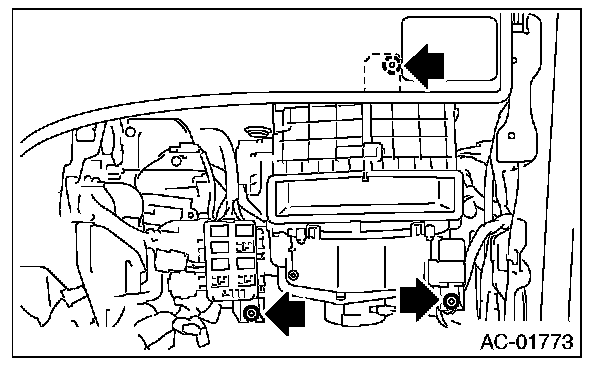

7. Remove the bolts and nuts to remove blower motor unit assembly.






INSTALLATION
Install each part in the reverse order of removal.


Tightening torque:
T: 7.5 N.m (0.76 kgf.m, 5.5 ft.lb)
