Cabin Air Filter / Purifier: Service and Repair
A/C FILTER
REPLACEMENT 1.

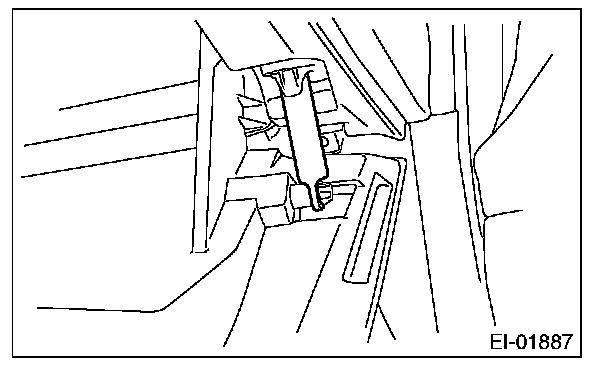

Remove the glove box damper.
2.

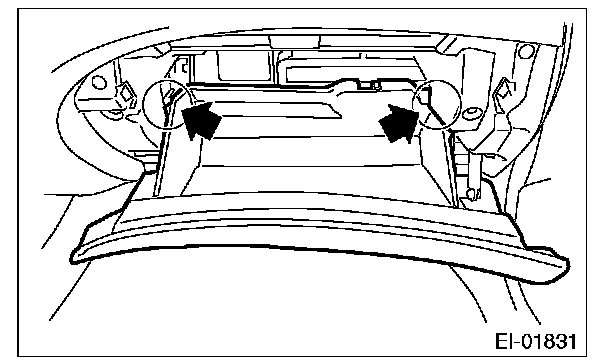

Disengage the stopper section and pull the glove box lid to remove it.
3.

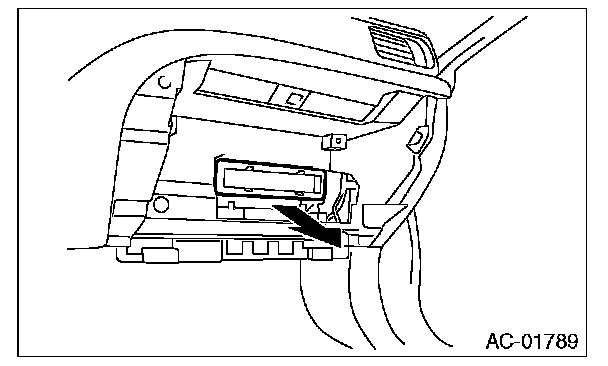

Pinch the tabs to release the lock and remove the A/C filter.
4.
Install each part in the reverse order of removal.
