Cabin Temperature Sensor / Switch: Service and Repair

IN-VEHICLE SENSOR (AUTO A/C MODEL)

REMOVAL

CAUTION: Be careful not to damage the sensors and interior trims when removing.

1. Disconnect the ground cable from battery.
2. Remove the instrument panel lower cover.

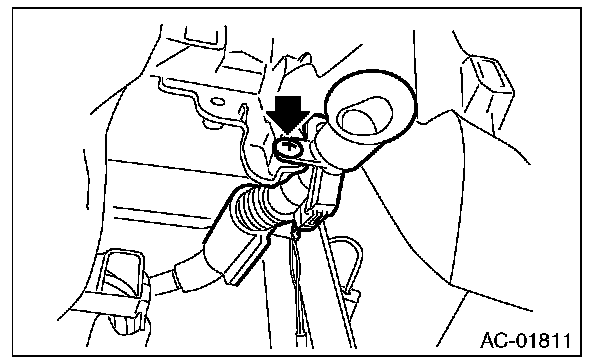

3. Disconnect the in-vehicle sensor connector and aspirator hose, and remove the in-vehicle sensor from the instrument panel.

INSTALLATION
Install each part in the reverse order of removal.
