Fog/Driving Lamp: Testing and Inspection

FRONT FOG LIGHT SYSTEM

INSPECTION

1. FRONT FOG LIGHT SWITCH
Measure the resistance between front fog light switch terminals. Refer to INSPECTION, Combination Switch (Light). Combination Switch (Light)

2. FRONT FOG LIGHT RELAY

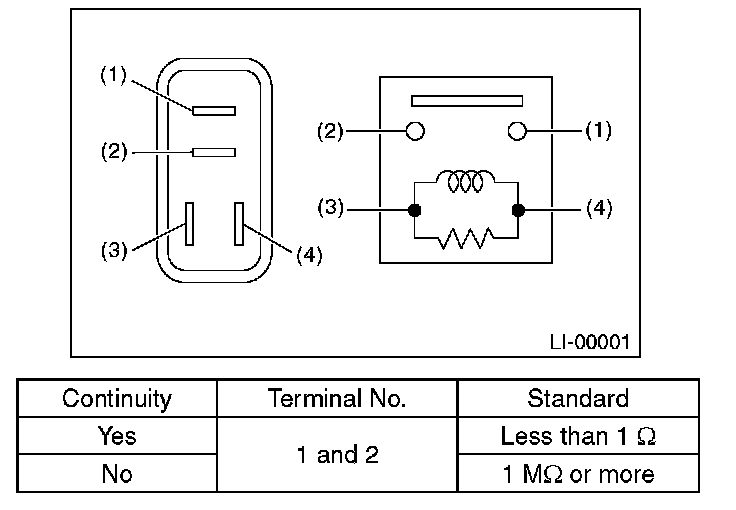

1. Connect terminal No. 4 to the battery positive terminal and the terminal No. 3 to the battery negative terminal, and check the resistance value between the front fog light relay terminals.






2. If the result of the inspection is not at the standard value, replace the front fog light relay.

NOTE
For operation procedures of each component of the front fog light system, refer to the respective section.
- Front fog light assembly.
- Front fog light bulb. Testing and Inspection
- Combination switch (light). Combination Switch (Light)
- Combination base switch. Combination Base Switch Assembly
