Headlamp Alignment Sensor: Service and Repair

REAR HEIGHT SENSOR

REMOVAL

CAUTION: Always remove the vehicle height sensor before removing any parts related to the suspension.


1. Disconnect the ground cable from battery.
2. Lift up the vehicle body, and remove the left rear wheel.
3. Disconnect the rear vehicle height sensor connector.

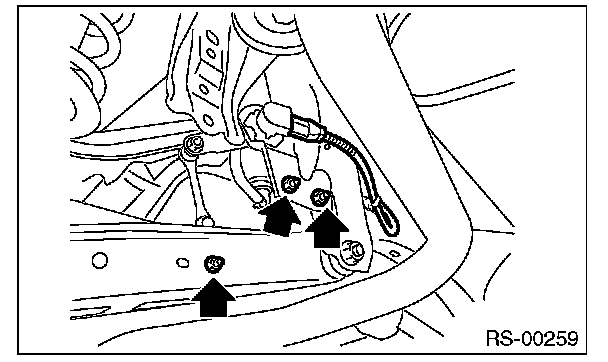

4. Remove the nut and remove the rear vehicle height sensor.

CAUTION: Remove the bracket as a unit, and do not disassemble the sensor and lever.






INSTALLATION
Install each part in the reverse order of removal.

Tightening torque: 7.5 N.m (0.76 kgf.m, 5.5 ft.lb)

NOTE: If the rear vehicle height sensor is removed, perform reinitialization. Refer to PROCEDURE, Auto Headlight Beam Leveler System.
