Key Cylinder Lamp: Service and Repair

IGNITION SWITCH ILLUMINATION

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the screws and steering cover lower.

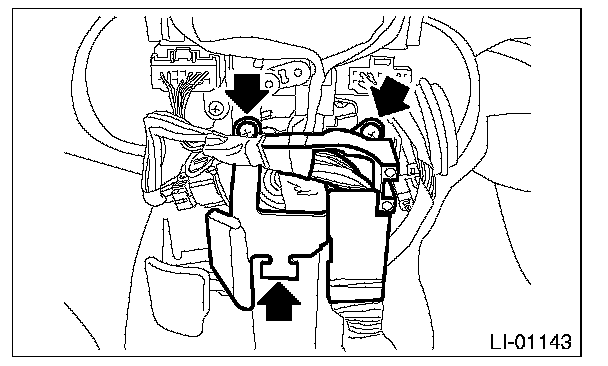

3. Remove the harness cover lock.
4. Remove the screws and detach the knee protector.

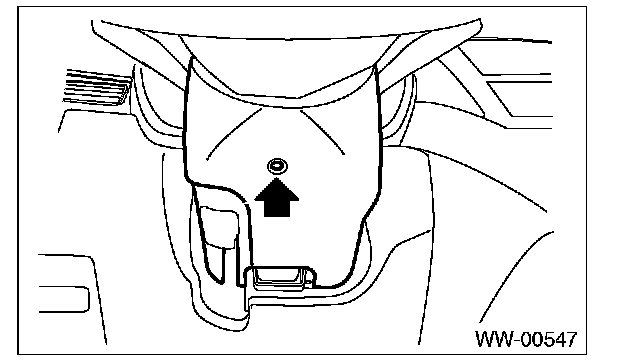

5. Remove the screws and remove the steering column cover upper.






6. Remove the instrument panel lower cover.

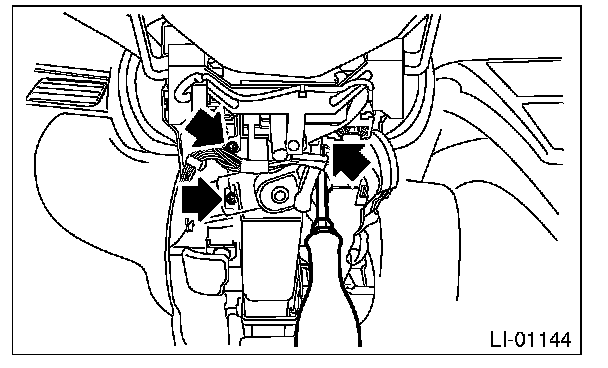

7. Disconnect the ignition switch illumination connector (A).
8. Turn the ignition switch illumination connector to the left and remove it.






INSTALLATION
Install each part in the reverse order of removal.
