Trunk Lamp: Testing and Inspection
LUGGAGE ROOM LIGHTINSPECTION 1. LUGGAGE ROOM LIGHT BULB 1.
Visually check the bulb for blow out.
2.
Check the bulb specification.
3.
Replace the bulb if it is found defective.
2. LUGGAGE ROOM LIGHT SWITCH 1.

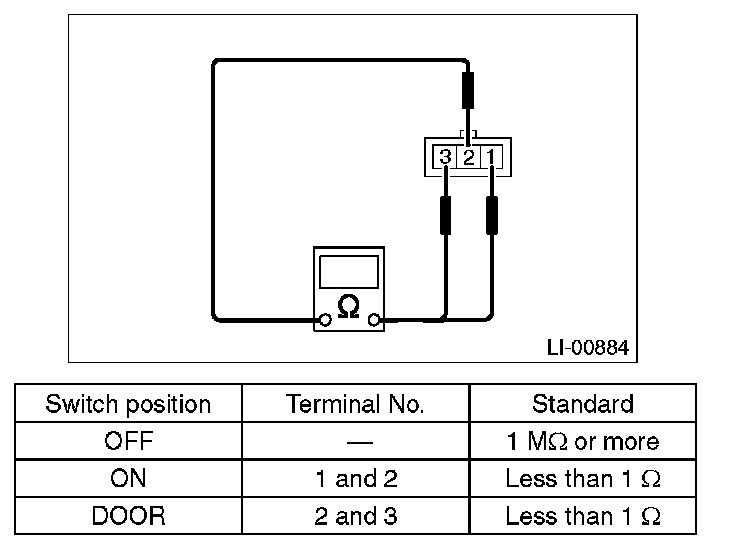

Measure the resistance between luggage room light switch terminals.
2.
Replace the luggage room light if the inspection result is not within the standard value.
