Combination Base Switch Assembly

COMBINATION BASE SWITCH ASSEMBLY

REMOVAL
1. Remove the driver's airbag module.

WARNING: Before handling the airbag module, refer to CAUTION of General Description in "AIRBAG SYSTEM". Airbag System

2. Remove the steering wheel.
3. Remove the combination switch.
- Combination switch (light).
- Combination switch (Wiper.

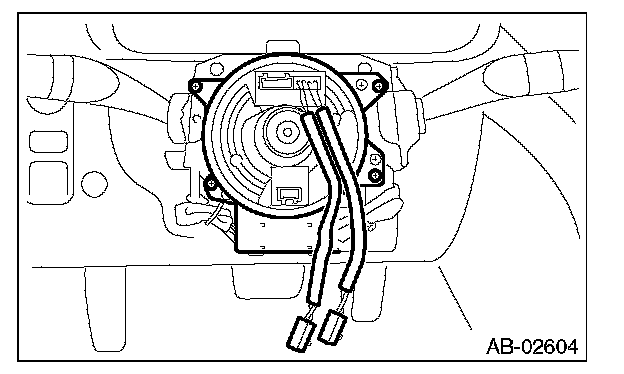

4. Remove the screws, and then remove the roll connector.

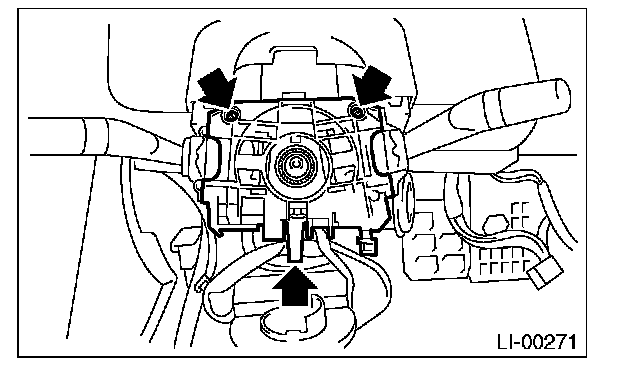

5. Remove the screws, disconnect the harness connector and remove the combination base switch assembly.






INSTALLATION
1. Before installing steering wheel, be sure to adjust the direction of roll connector with steering.
2. Install each part in the reverse order of removal.
