Clear Memory Mode

CLEAR MEMORY MODE

OPERATION
1. On {{Main Menu}} display, select {Each System Check}.
2, On {{System Selection Menu}} display, select {Integ. unit mode}.
3. Press the [OK] key after the information of body integrated unit type is displayed.

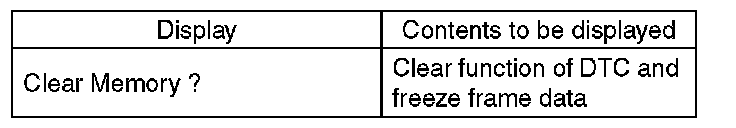

4. On {{Integ. unit mode failure diag}} display, select {Clearing Memory} and press the [OK] key.






5. When "Done" is shown on the display screen, turn the ignition switch to OFF.

NOTE: For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
