PCV Valve Hose: Service and Repair

PCV Hose Assembly

REMOVAL

CAUTION: Do not remove except when the PCV hose is broken.

1. Remove the intake manifold.
2. Remove the tumble generator valve assembly.
3. Remove the PCV hose assembly from the cylinder block RH and cylinder block LH.

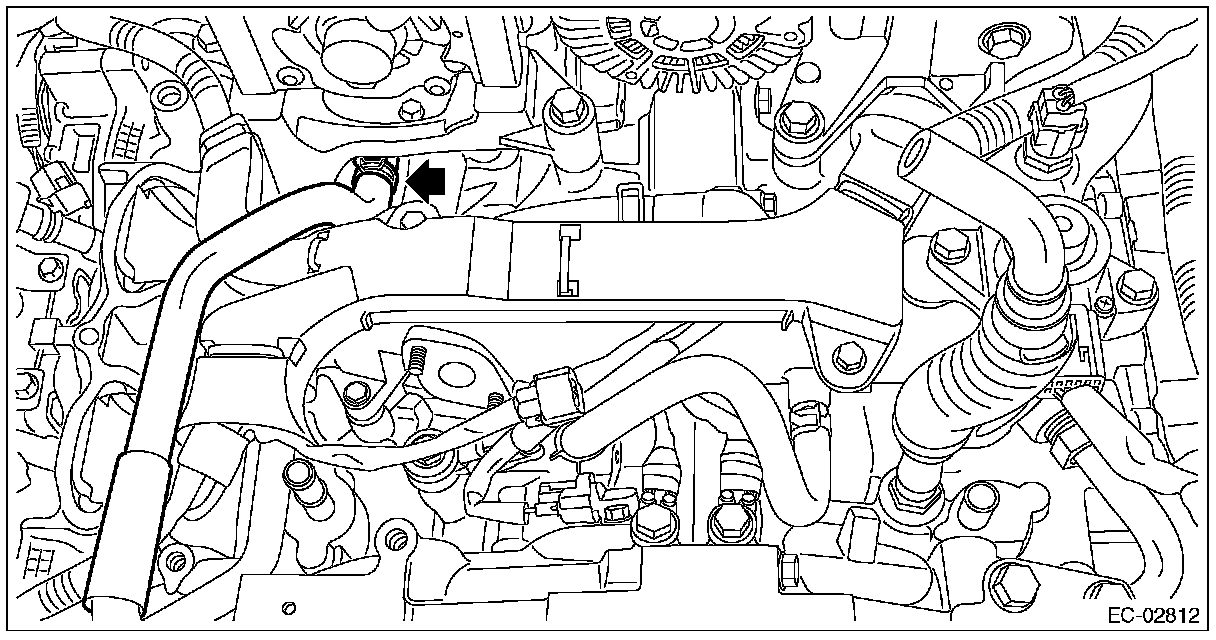

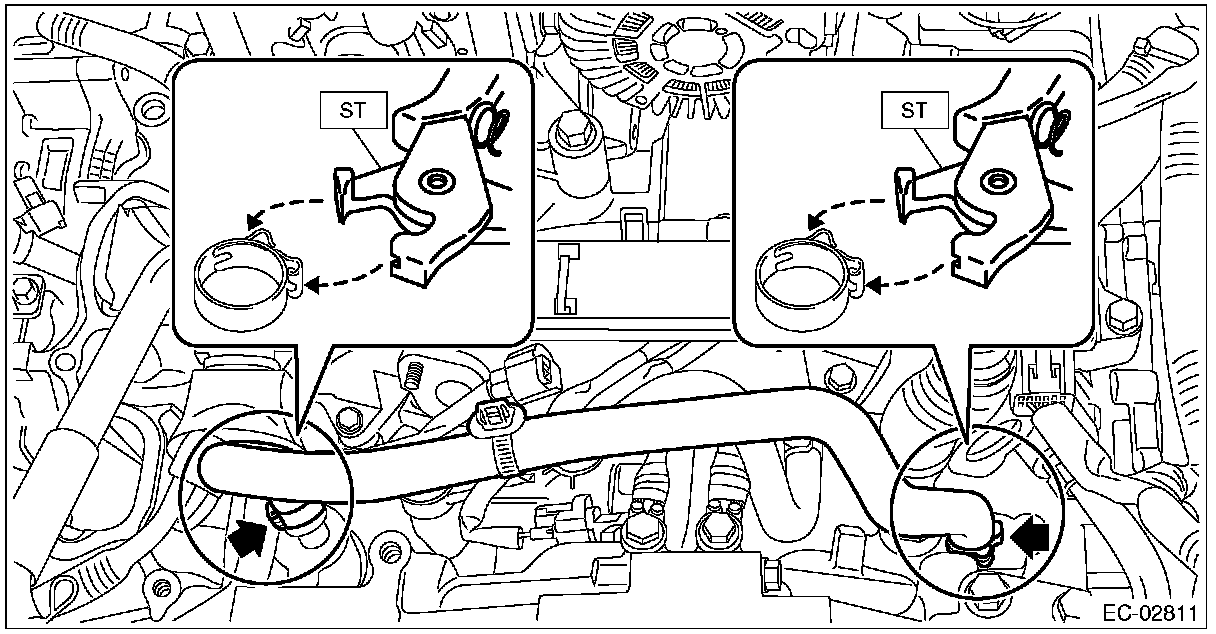

NOTE: Pinch the clamp of the PCV hose assembly by fitting the cut out in the ST with the protrusion on the clamp as shown in the figure, and unlock the clamp.
ST 18353AA000 CLAMP PLIERS






4. Remove the PCV hose assembly from the PCV connector.






INSTALLATION

1. Attach the PCV hose assembly to the PCV connector.







2. Install the PCV hose assembly onto the cylinder block RH and cylinder block LH.

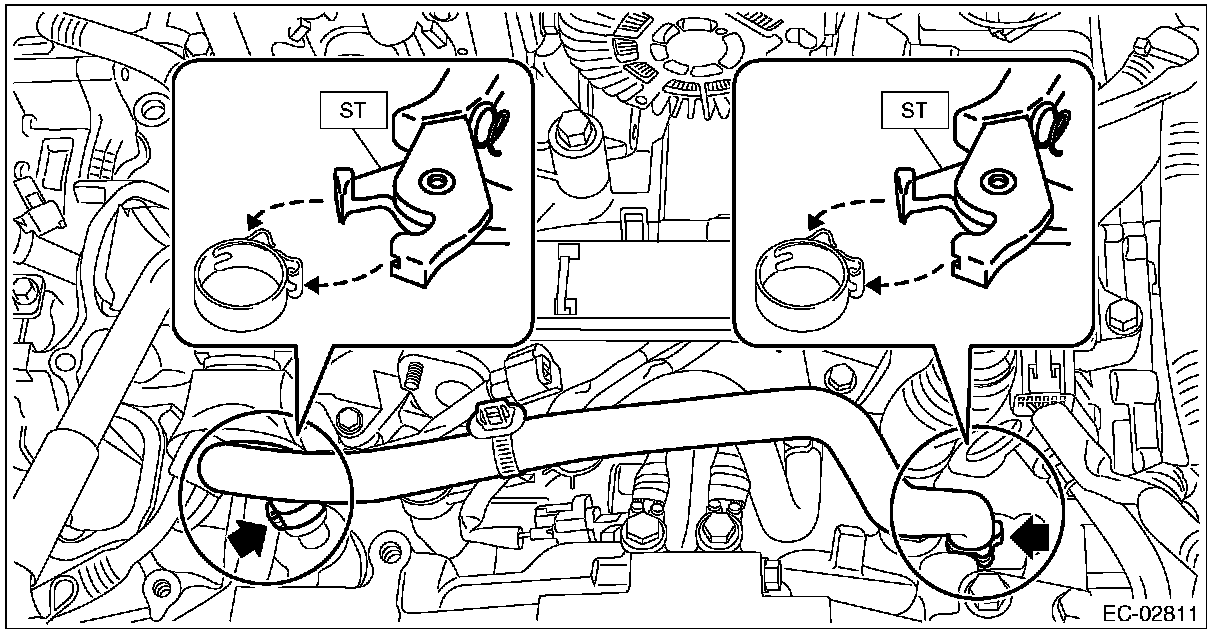

NOTE: Use a new clamp for the PCV hose assembly, fit the cut out in the ST with the protrusion on the clamp as shown in the figure, and lock the clamp.
ST 18353AA000 CLAMP PLIERS






3. Install the tumble generator valve assembly.
4. Install the intake manifold.
