Overhaul
Tumble Generator Valve AssemblyDISASSEMBLY 1.
Remove the tumble generator valve actuator from the tumble generator valve.
-

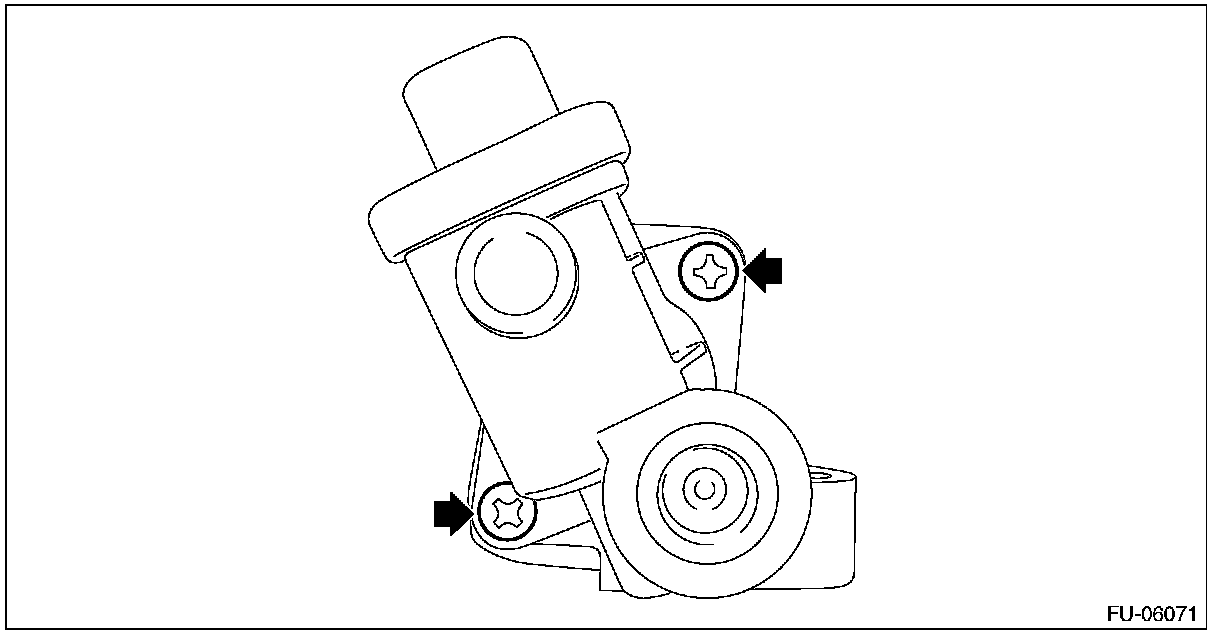

LH side
-

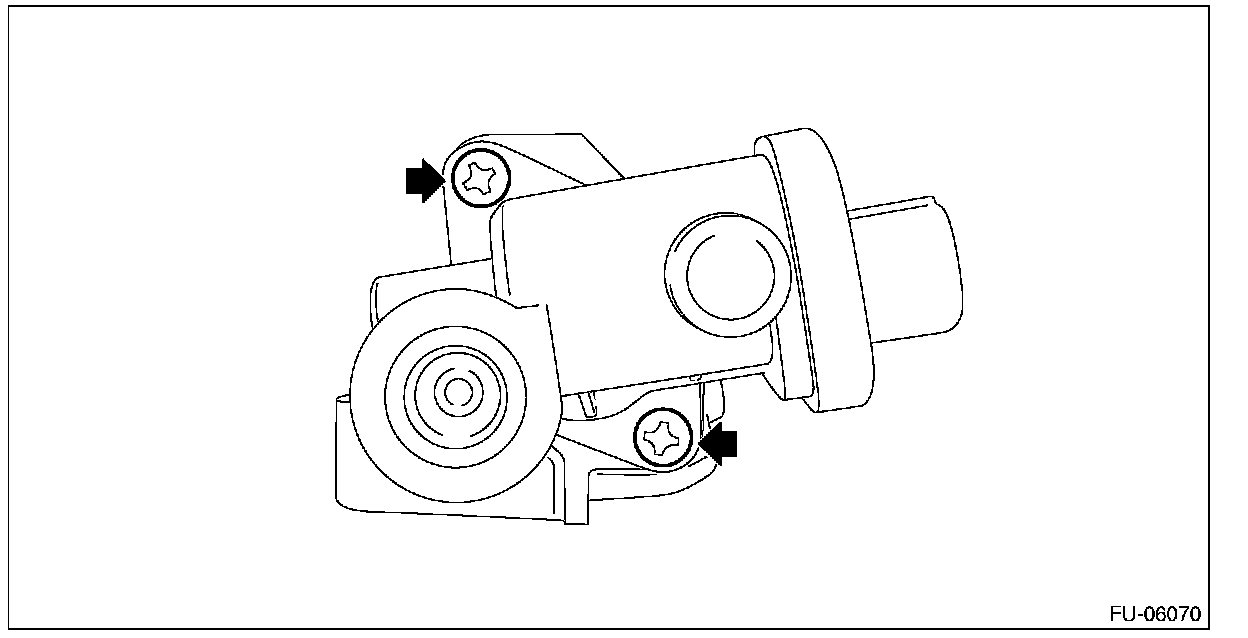

RH side
ASSEMBLYAssemble in the reverse order of disassembly.
NOTE: Use a new gasket.
Tightening torque: 6 N.m (0.6 kgf.m, 4.4 ft.lb)
