Removal and Replacement

Tumble Generator Valve Assembly

REMOVAL

1. Release the fuel pressure.

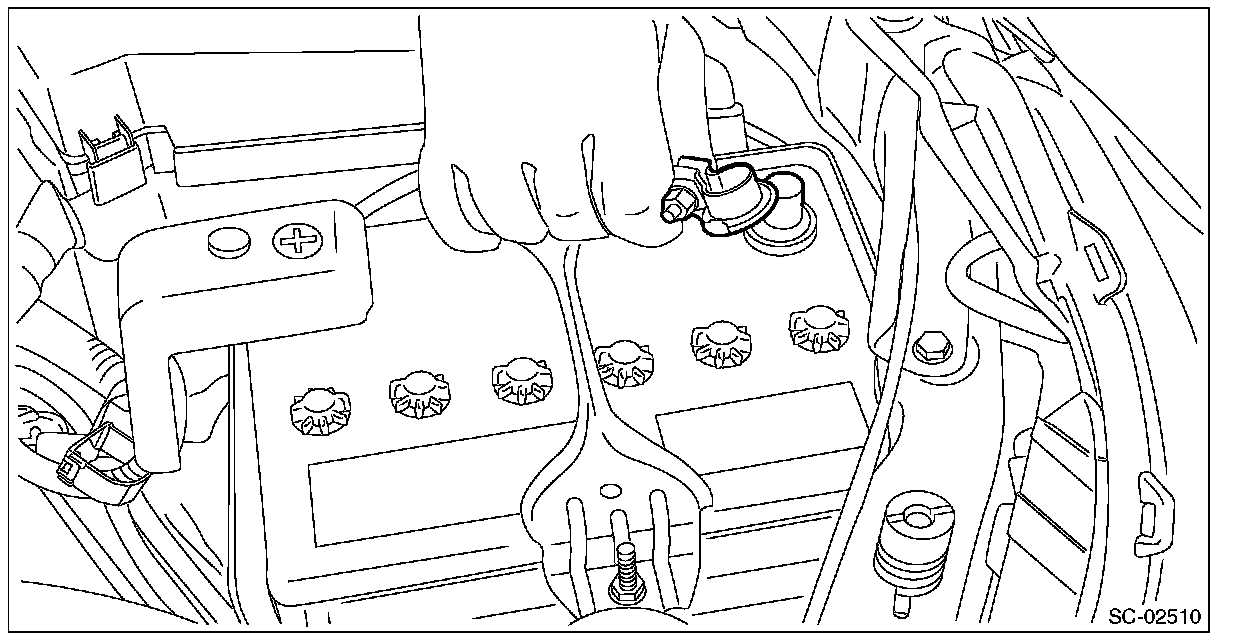

2. Disconnect the ground cable from battery.






3. Open the fuel filler lid and remove the fuel filler cap.
4. Remove the intake manifold.
5. Disconnect the connectors (A) from fuel injector.
6. Disconnect the connector (B) from the tumble generator valve assembly.
7. Remove the tumble generator valve assembly from the cylinder head.

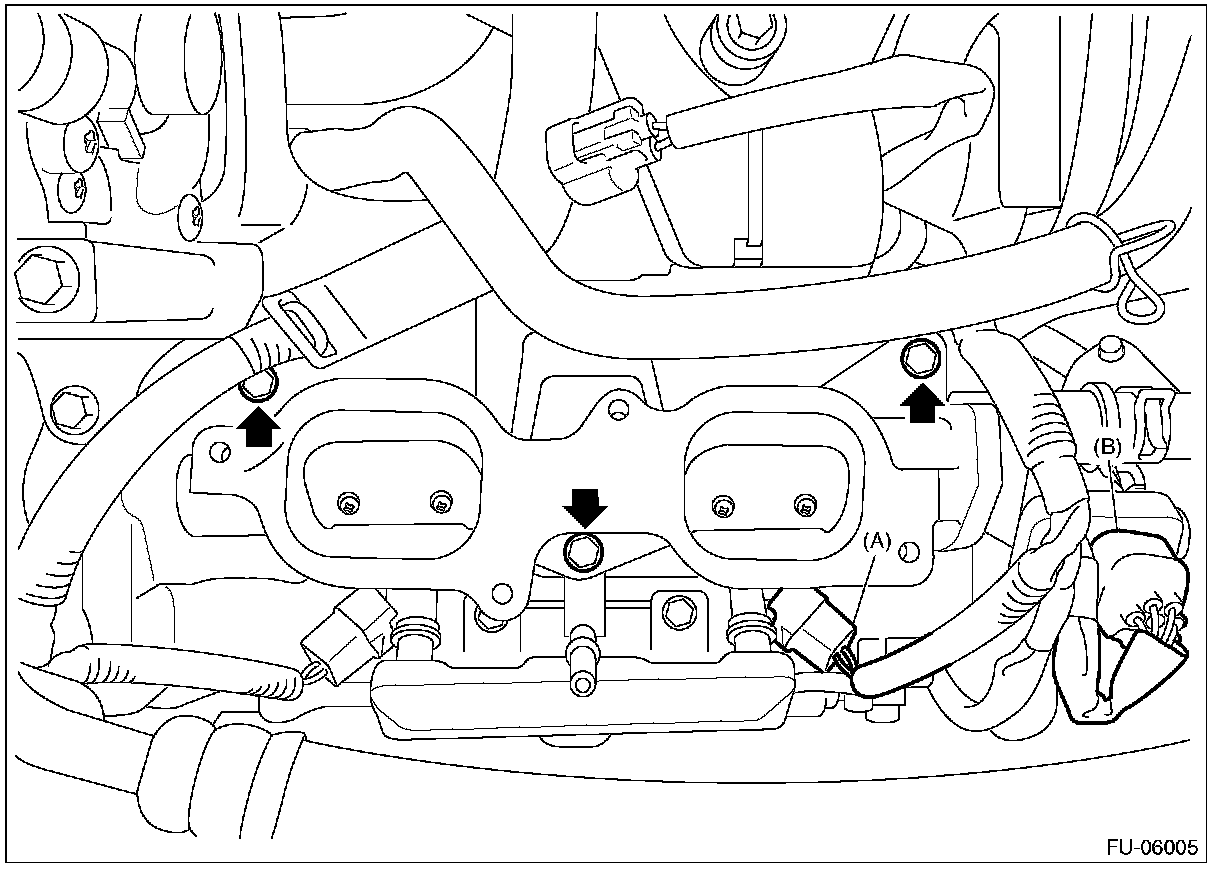

- LH side

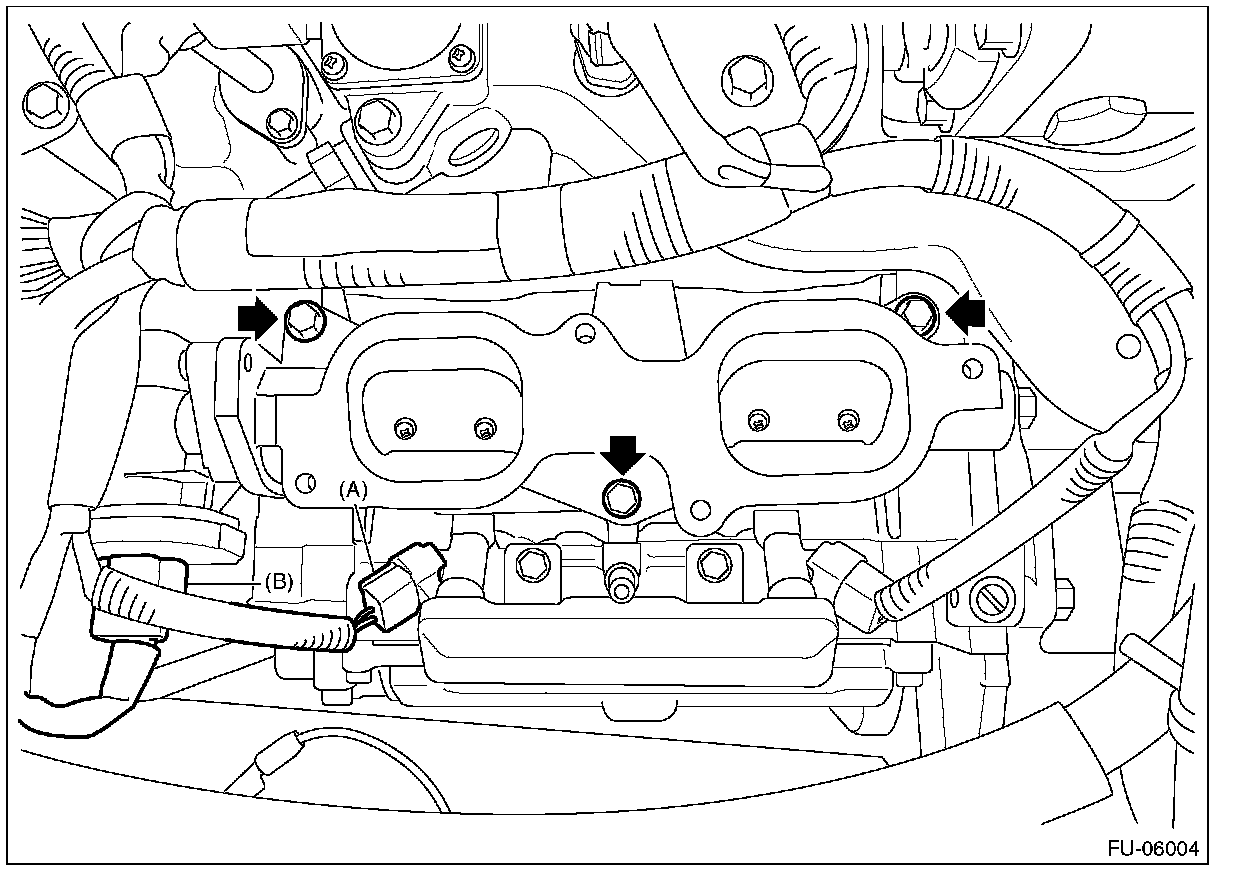

- RH side

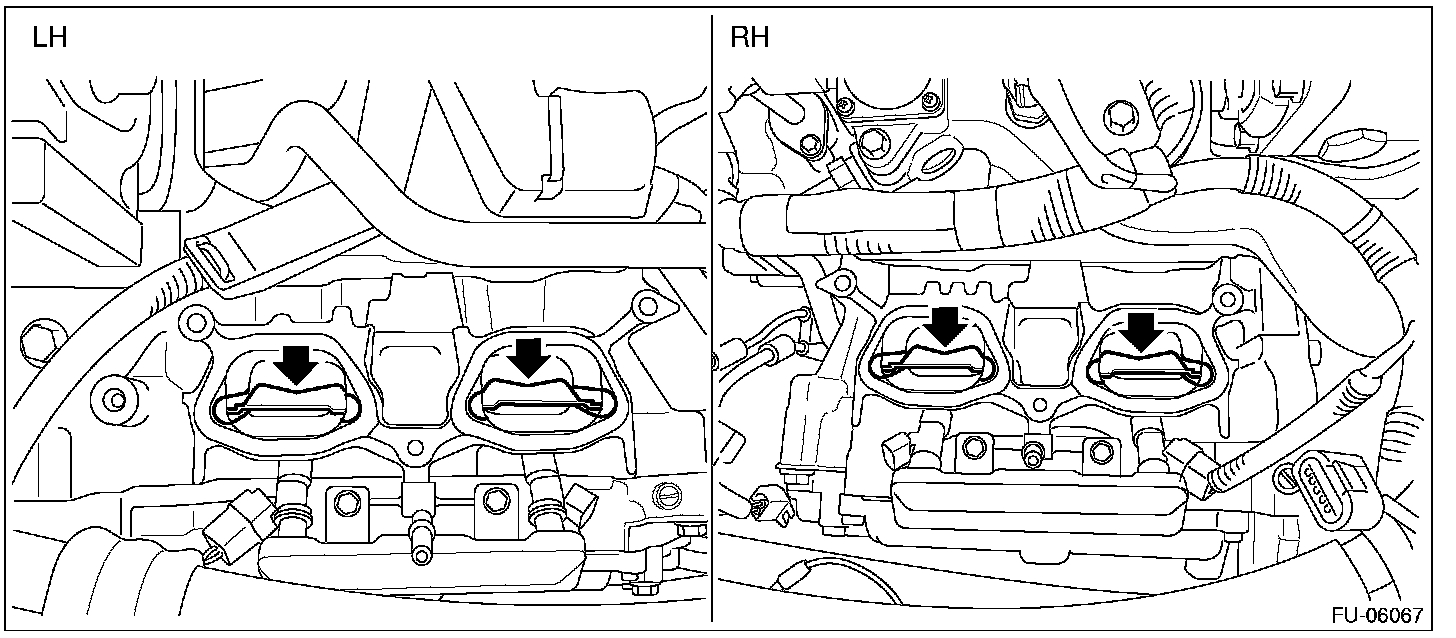

8. Remove the cylinder head plate from cylinder head.






INSTALLATION

Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque: 25 N.m (2.5 kgf.m, 18.4 ft.lb)
