Knock Sensor: Service and Repair

Knock Sensor

REMOVAL

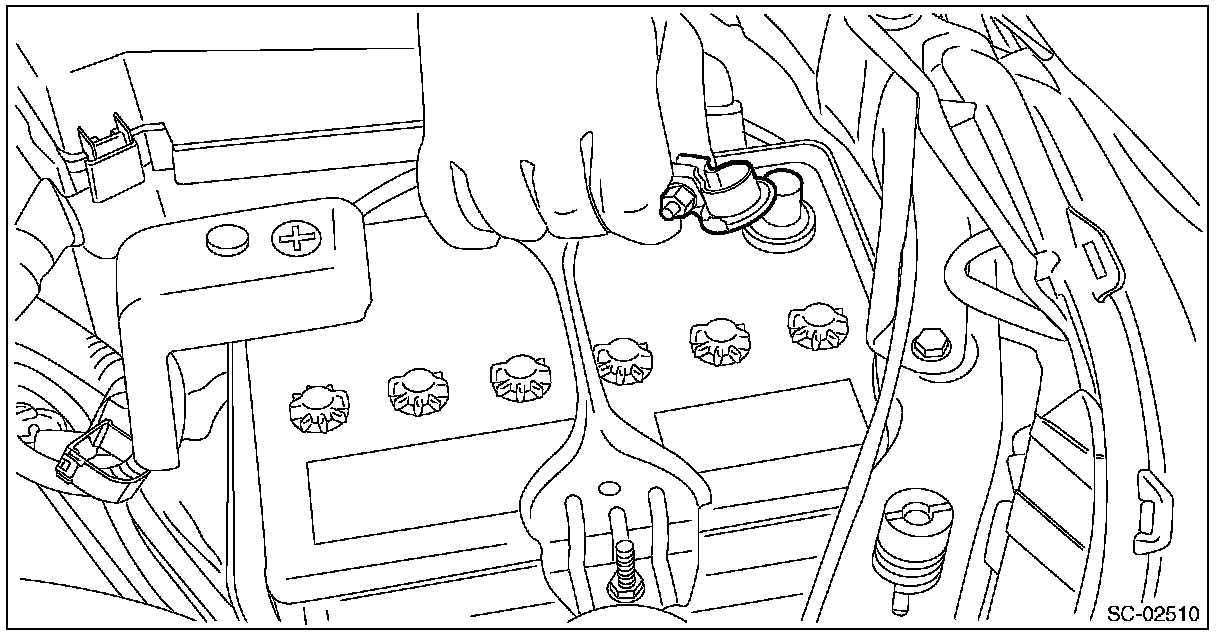

1. Disconnect the ground cable from battery.






2. Remove the air intake boot.

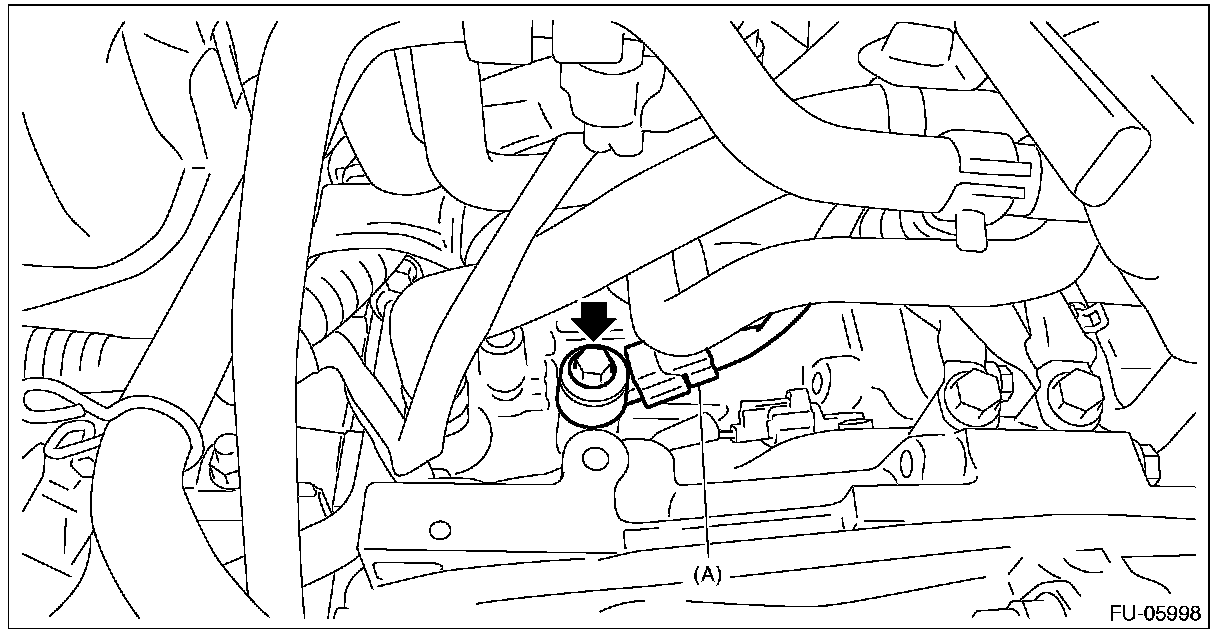

3. Disconnect the connector (A) from the knock sensor, and remove the knock sensor from the cylinder block.






INSTALLATION

1. Install the knock sensor to the cylinder block.

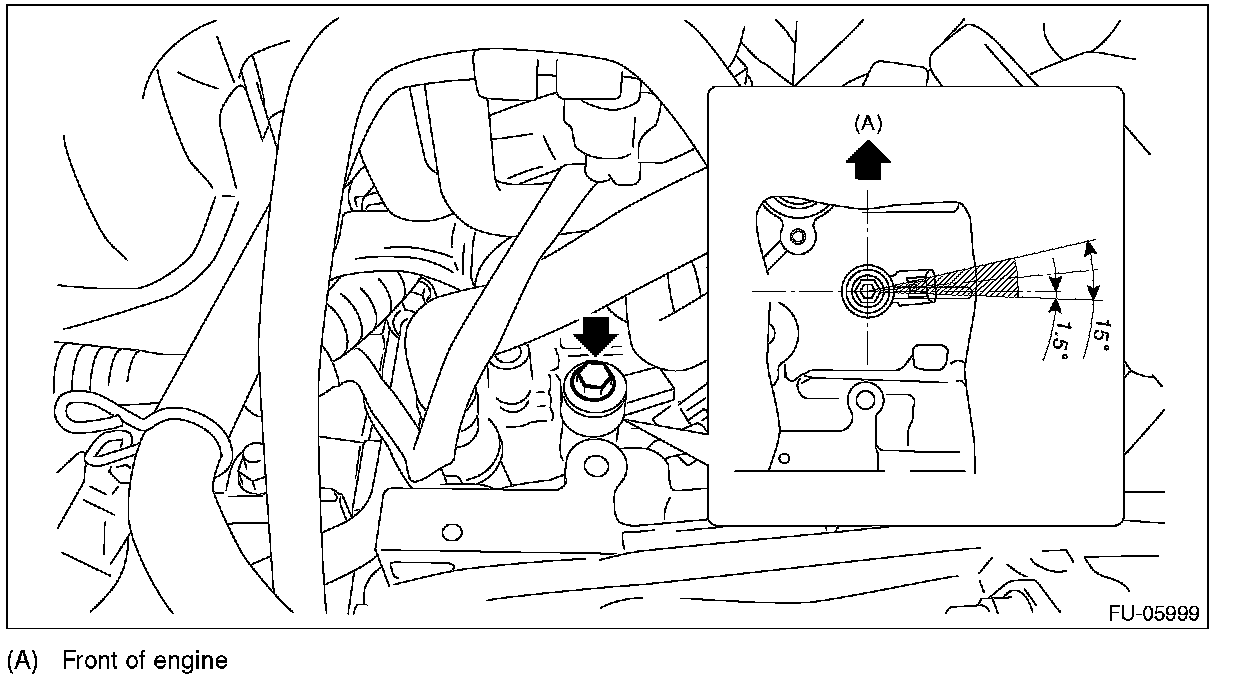

NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 76.5 - 91.5° angle relative to the front of engine.

Tightening torque: 24 N.m (2.4 kgf.m, 17.7 ft.lb)






2. Connect the connector to the knock sensor.






3. Install the air intake boot.
4. Connect the battery ground terminal.
