Cylinder Head Assembly

Cylinder Head Bot

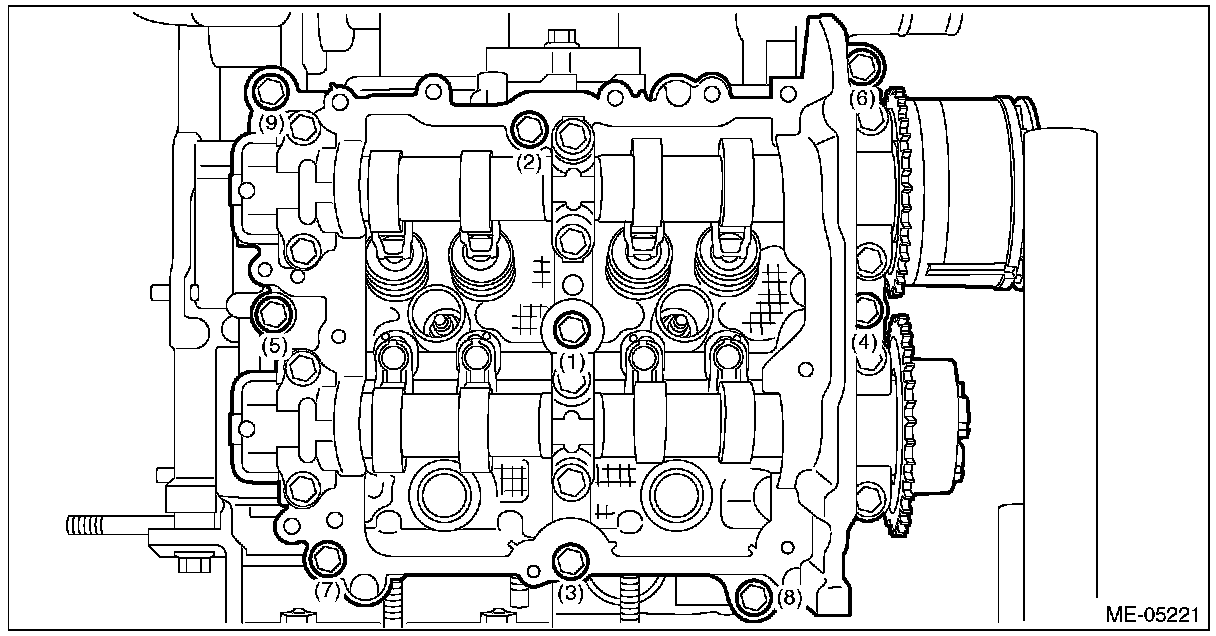

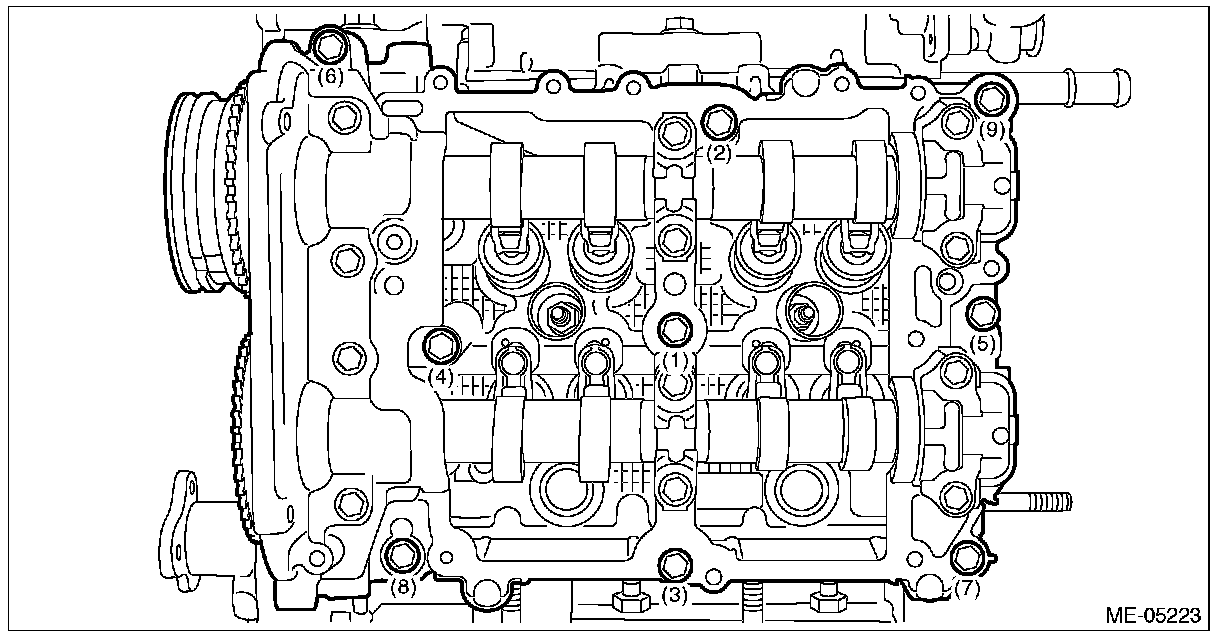

Tighten all bolts to 40 Nm (4.1 kgf-m, 29.5 ft-lb) in alphabetical order.
Retighten all bolts to 95 Nm (9.7 kgf-m, 70.1 ft-lb) in alphabetical order.
Loosen all bolts 180°
(in the reverse order of installing)
Loosen them further by 180°.
Tighten all bolts to 10 Nm (1.0 kgf-m, 7.4 ft-lb) in alphabetical order.
Retighten all bolts to 30 Nm (3.1 kgf-m, 22.1 ft-lb) in alphabetical order.
Retighten all bolts to 60 Nm (6.1 kgf-m, 44.3 ft-lb) in alphabetical order.
Retighten all bolts by 80 - 90° in alphabetical order.
Retighten all bolts by 40 - 45° in alphabetical order.
Retighten bolts (a) and (b) by 40 - 45°.
Cylinder Head bolts: are reuseable

Warping limit 0.035 mm (0.0014 in)
(Mating surface with cylinder block)

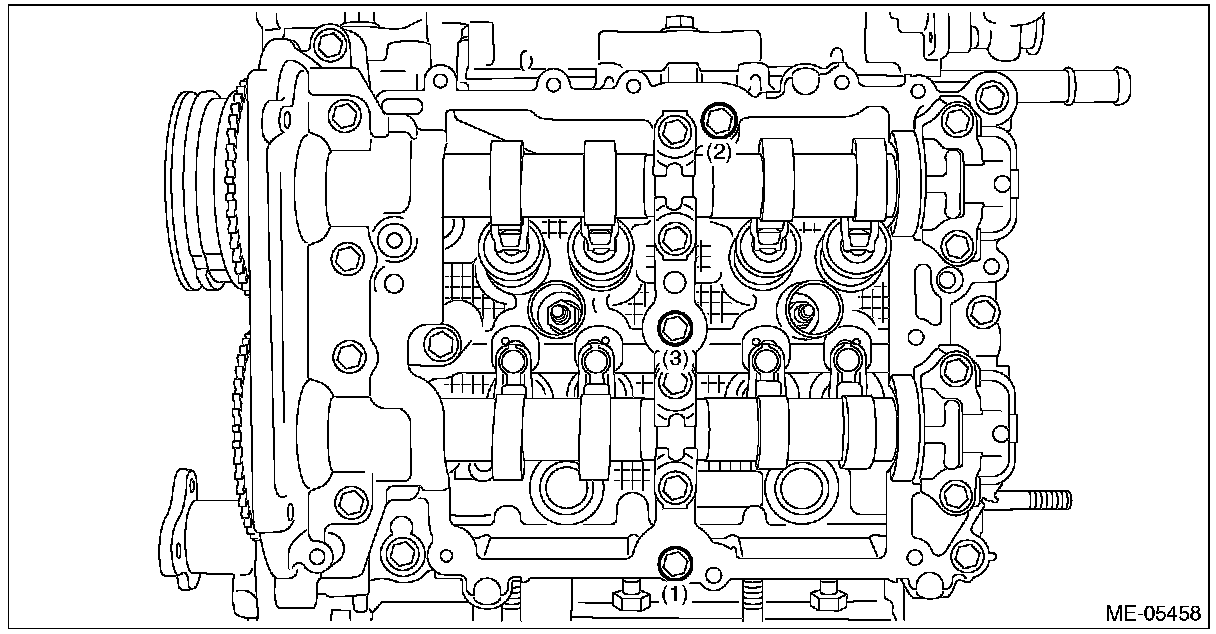

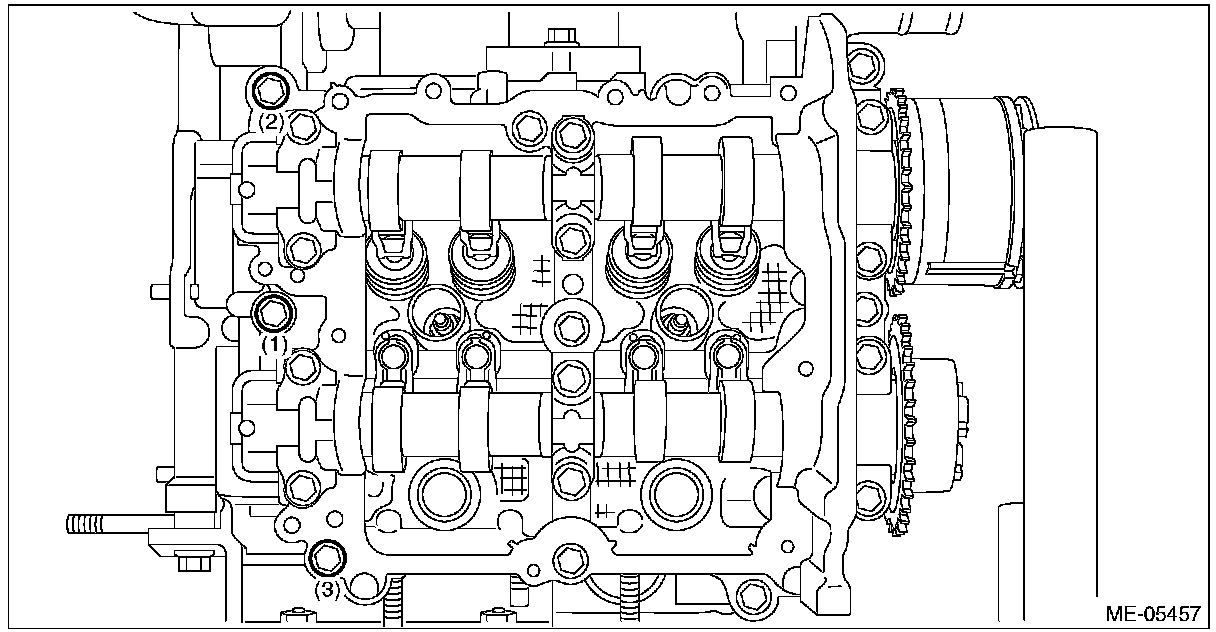

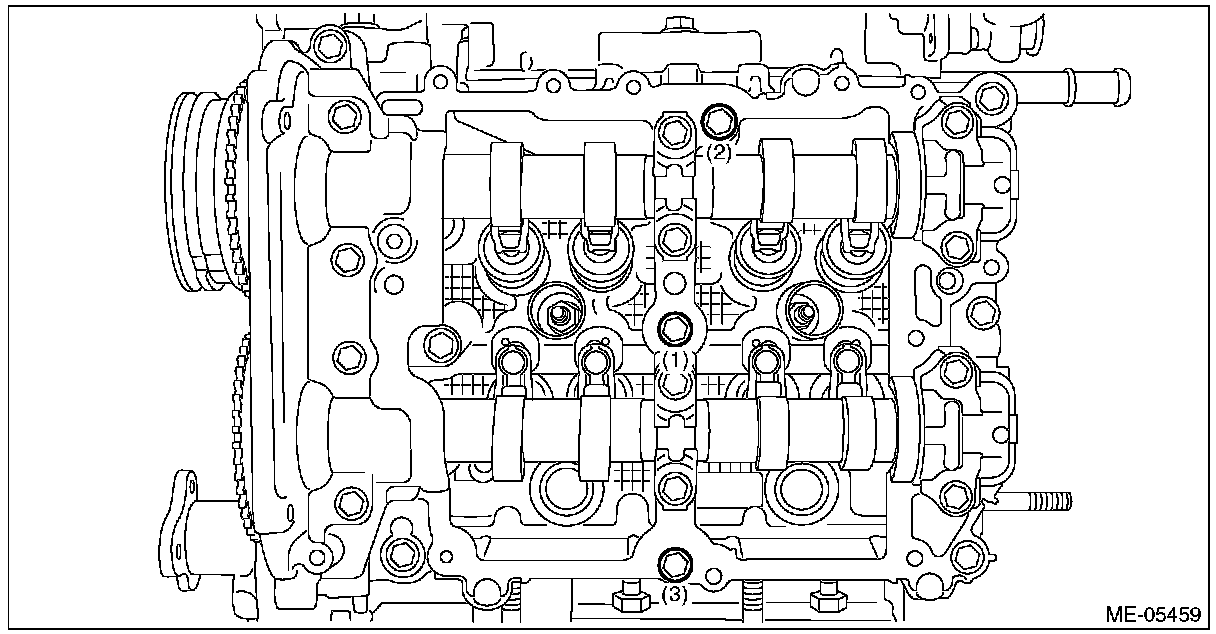

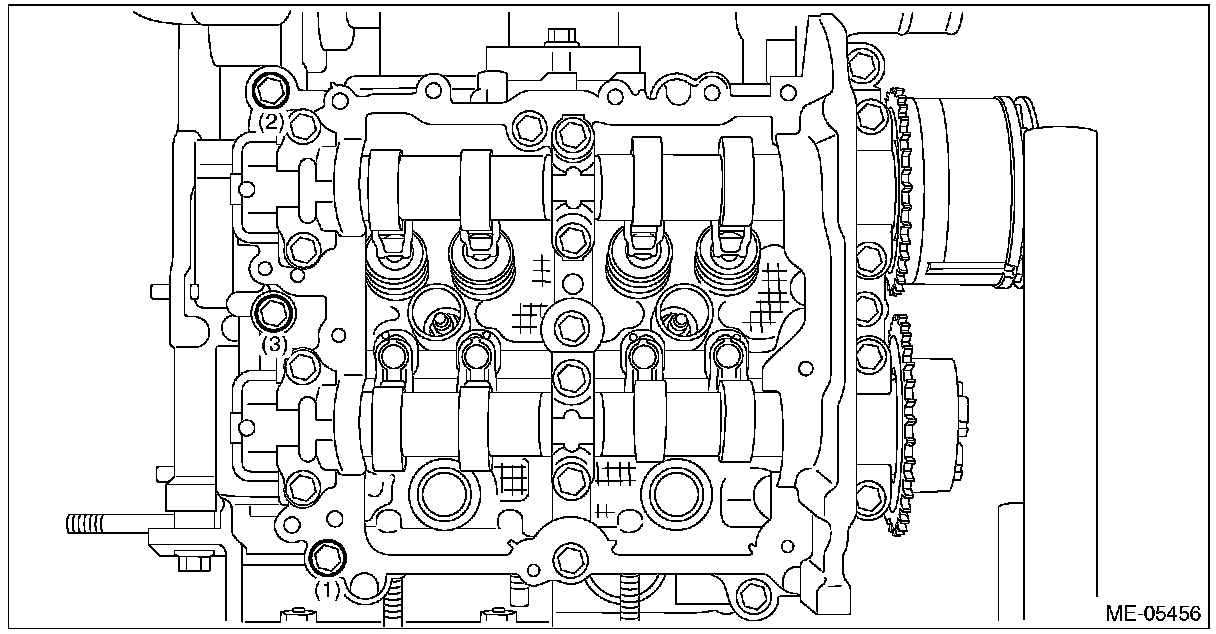

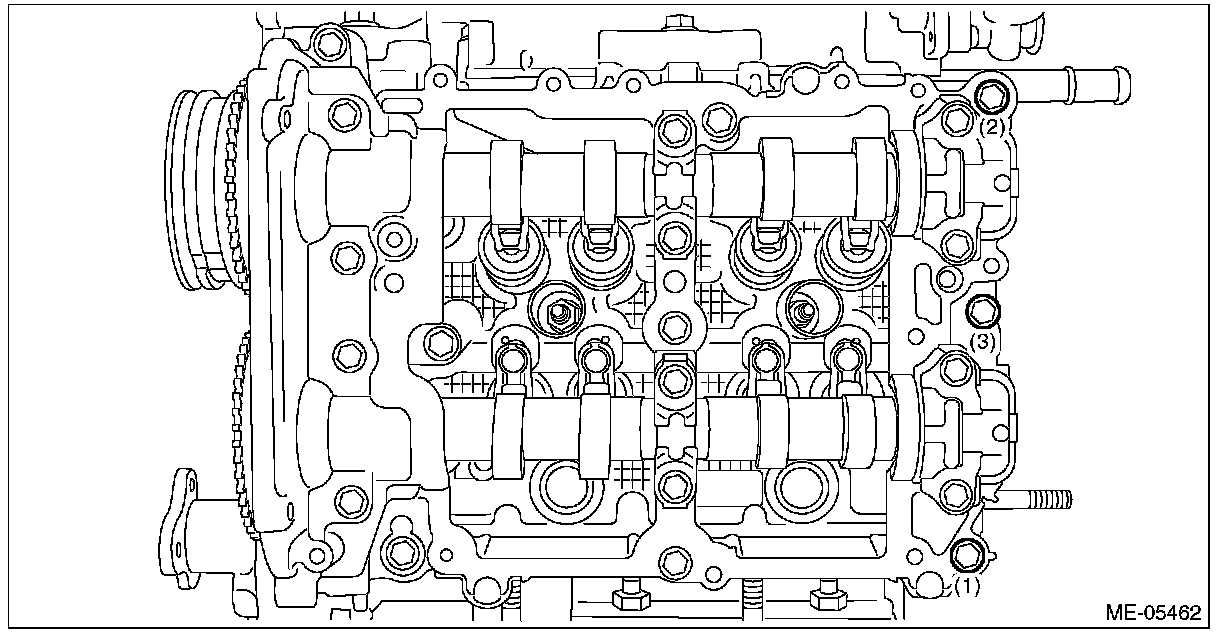

Cam carrier

Tighten all bolts 18 Nm (1.8 kgf-m, 13.3 ft-lb)
