Select Cable
Select CableADJUSTMENT
1) Set the vehicle on a lift.
2) Shift the select lever to "N" range.
3) Lift up the vehicle.
4) Remove the rear exhaust pipe. (non-turbo model)
5) Remove the center exhaust pipe (rear). (turbo model)
6) Remove the heat shield cover.
7) Loosen the adjusting nuts on both sides.
8) Turn adjusting nut B until it lightly touches the connector.

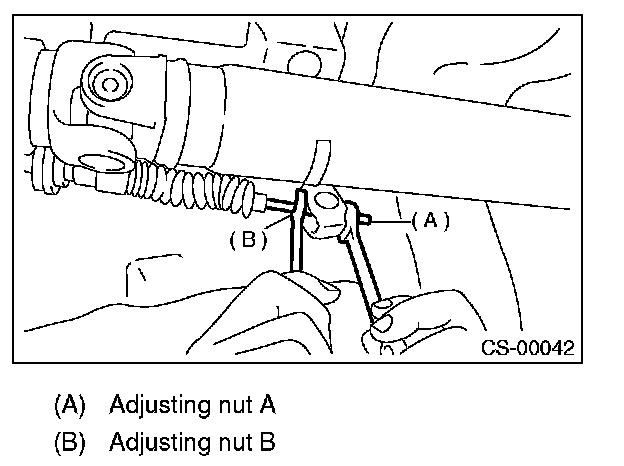

9) Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque:
7.5 Nm (0.8 kgf-m, 5.5 ft-lb)
10) After the completion of adjustment, confirm that the select lever operates normally at all ranges.
11) Install in the reverse order of removal.
