Case: Service and Repair

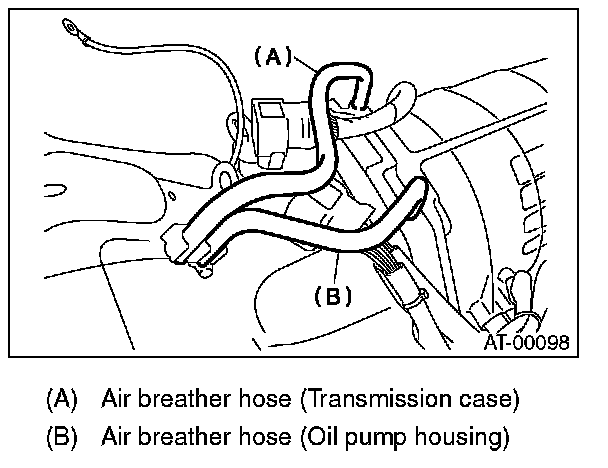

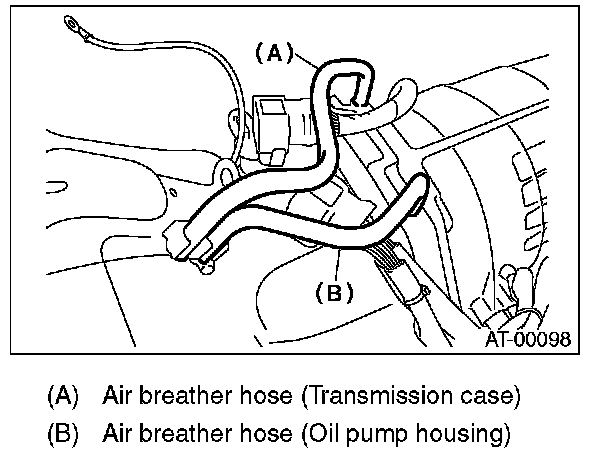

Air Breather HoseREMOVAL 1)
Remove the air intake boot assembly. (non-turbo model)
2)
Remove the intercooler. (turbo model)
3)
Disconnect the air breather hose.
INSTALLATION 1)
Install the air breather hose.
2)
Install the air intake boot assembly. (non-turbo model)
3)
Install the intercooler. (turbo model)
INSPECTION Check that the air breather hose is not cracked or clogged.
