Power Window Switch: Service and Repair

Power Window Control Switch

REMOVAL

1. MAIN SWITCH
1. Disconnect the ground cable from battery.
2. Remove the power window switch panel.







1. Open the cover and remove the screws.

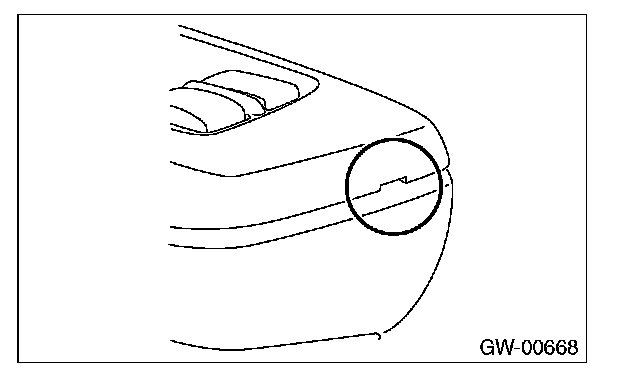

2. Lift up the tip of switch panel by using a plastic remover.

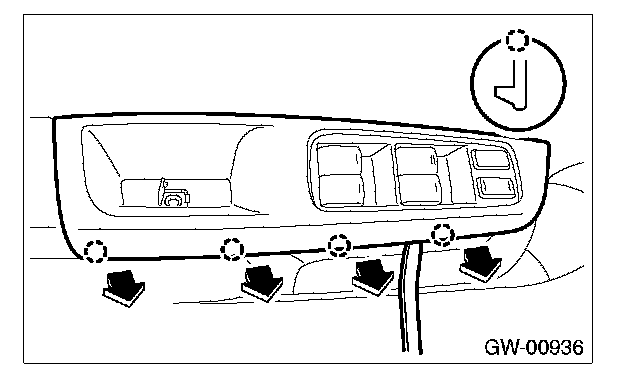

3. Disengage the end face tabs by using plastic remover.







4. Remove the power window switch panel.

3. Disconnect the main switch connector.
4. Remove the screws to remove the power window main switch assembly.

2. SUB-SWITCH
1. Remove the power window switch panel.







1. Open the cover and remove the screws
2. Lift up the tip of switch panel by using a plastic remover.

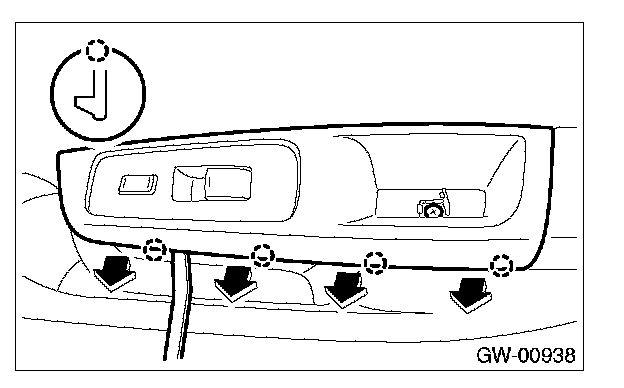

3. Disengage the end face tabs by using a plastic remover.







4. Remove the power window switch panel.

2. Disconnect the sub-switch connector.
3. Remove the screws to remove the power window sub-switch assembly.

INSTALLATION
Install each part in the reverse order of removal.
