Front Door Window Regulator: Service and Repair
Front Regulator and Motor AssemblyREMOVAL 1
Remove the front door glass.
2
Disconnect the motor connector.
3

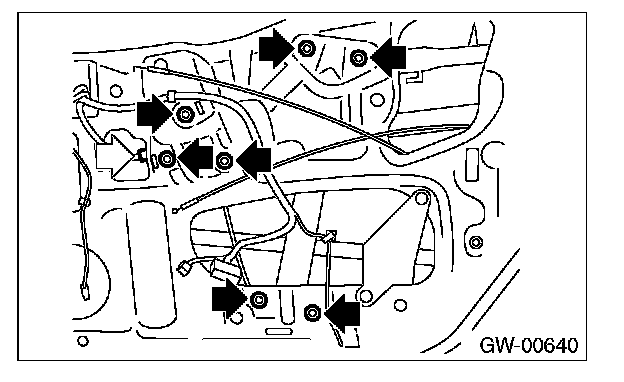

Remove the bolts, and then remove the front regulator and motor assembly.
INSTALLATIONInstall each part in the reverse order of removal.
Tightening torque:
Refer to "COMPONENT" of "General Description". [Ref. to, FRONT DOOR GLASS, COMPONENT, General Description.]
