Rear Door Window Regulator: Service and Repair
Rear Regulator and Motor AssemblyREMOVAL 1
Remove the rear door glass.
2

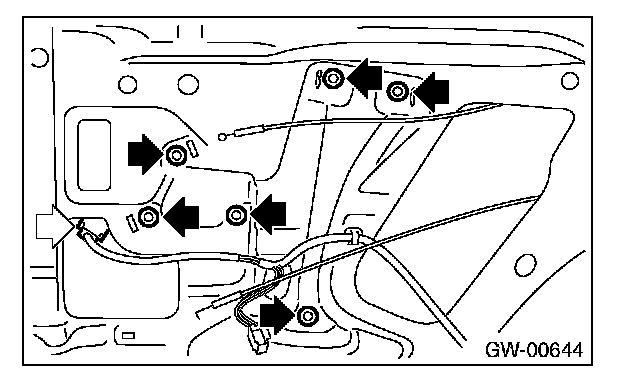

Disconnect the motor connector.
3
Remove the bolts, and then remove the rear regulator and regulator assembly.
INSTALLATIONInstall each part in the reverse order of removal.
Tightening torque:
Refer to "COMPONENT" of "General Description". [Ref. to, REAR DOOR GLASS, COMPONENT, General Description.]
