Removal and Replacement
WIPER BLADE
REMOVAL 1. FRONT 1.
Pull up locking clip (A), and push the arm into the blade assembly side. (Arrow 2)
2.
While lifting the arm, pull out (Arrow 3), and remove the blade assembly from the arm.

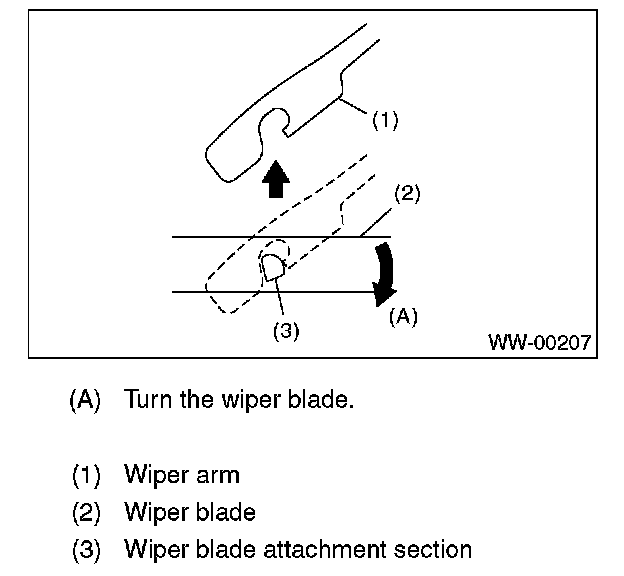

2. REAR Turn the blade in the direction of arrow (A) and remove it from arm.
INSTALLATION 1.
Install each part in the reverse order of removal.
2.
Confirm that the clip is locked securely.
