Wiper Switch: Service and Repair

COMBINATION SWITCH (WIPER)

REMOVAL
1. Disconnect the ground cable from battery.

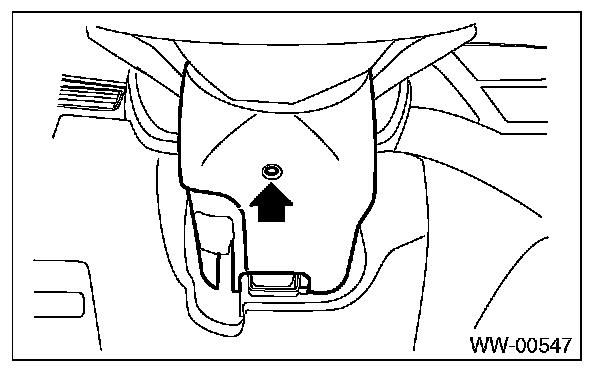

2. Remove the screws and remove the steering column cover lower.

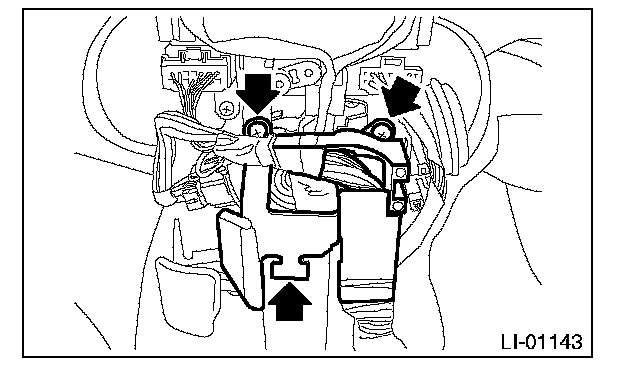

3. Remove the harness cover lock.
4. Remove the screws and detach the knee protector.

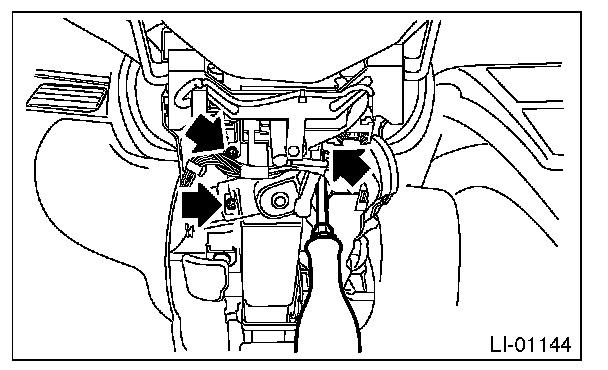

5. Remove the mounting screws of steering column cover upper.






6. Disconnect the connector from wiper switch.

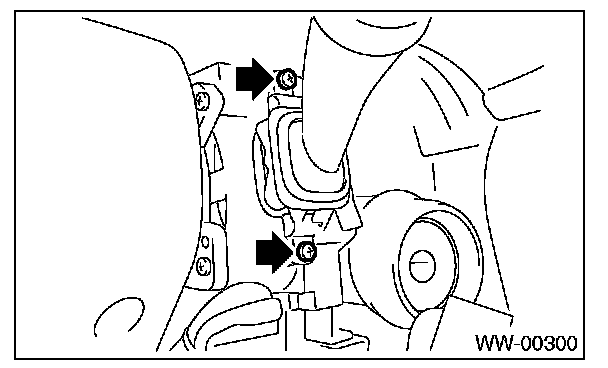

7. Remove the screws and then remove the wiper switch.






INSTALLATION
Install each part in the reverse order of removal.
