Fuel Level Sensor

Fuel Level Sensor

REMOVAL

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:
- Be careful not to spill fuel.
- If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.

NOTE: The fuel level sensor is built in fuel pump assembly.

1. Remove the fuel pump assembly.

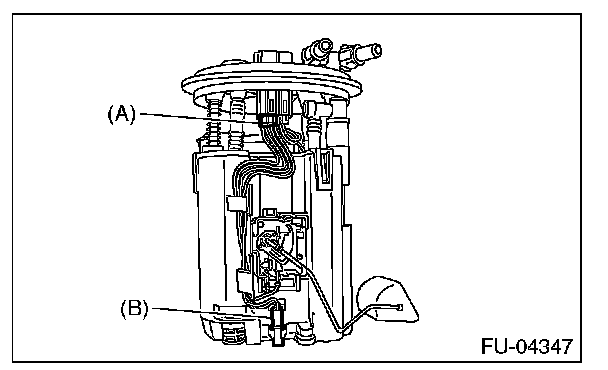

2. Disconnect the fuel level sensor connector (A) from the sub tank bracket assembly.
3. Remove the fuel temperature sensor (B) from sub tank.






4. Slide the fuel level sensor in the direction of the arrow and remove the fuel level sensor by pressing the claw (A) of the fuel level sensor.






INSTALLATION
Install in the reverse order of removal.
