Variable Induction Control Valve: Service and Repair

Tumble Generator Valve Assembly

REMOVAL

1. Release the fuel pressure.
2. Remove the collector cover.
3. Disconnect the ground cable from battery.

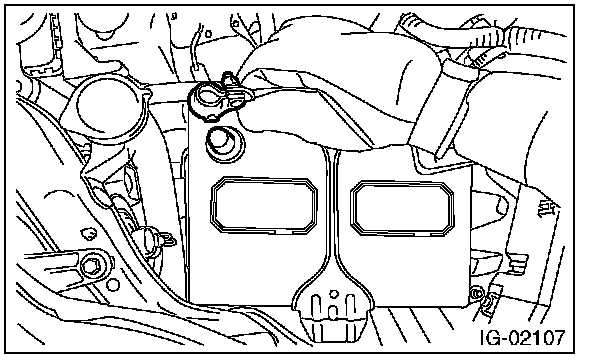

4. Open the fuel filler lid and remove the fuel filler cap.
5. Remove the intake manifold.

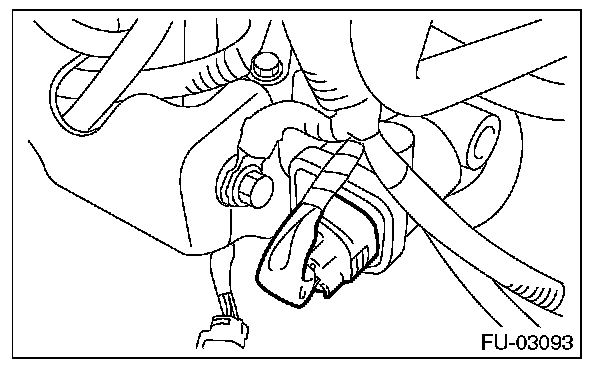

6. Disconnect the connector from the tumble generator valve assembly.






7. Remove the fuel injector.

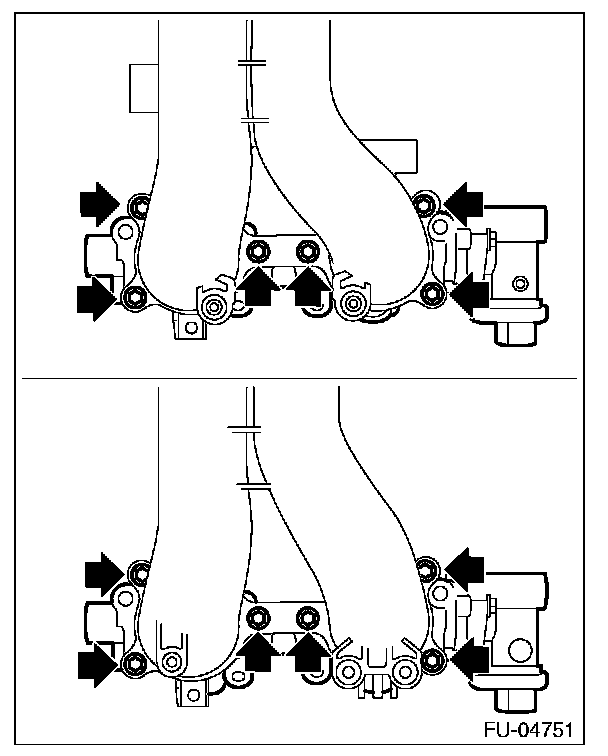

8. Remove the tumble generator valve assembly from the intake manifold.

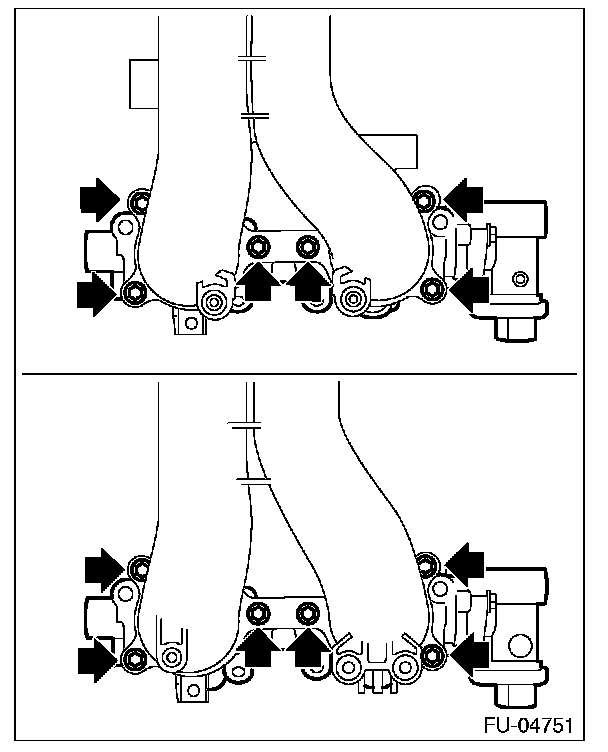

INSTALLATION

Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque: 8.3 N.m (0.8 kgf.m, 6.1 ft.lb)
