Front Hood Grille

Front Hood Grille

Front Hood Grille:

REMOVAL

1. Open the front hood.
2. Remove the hood duct assembly.

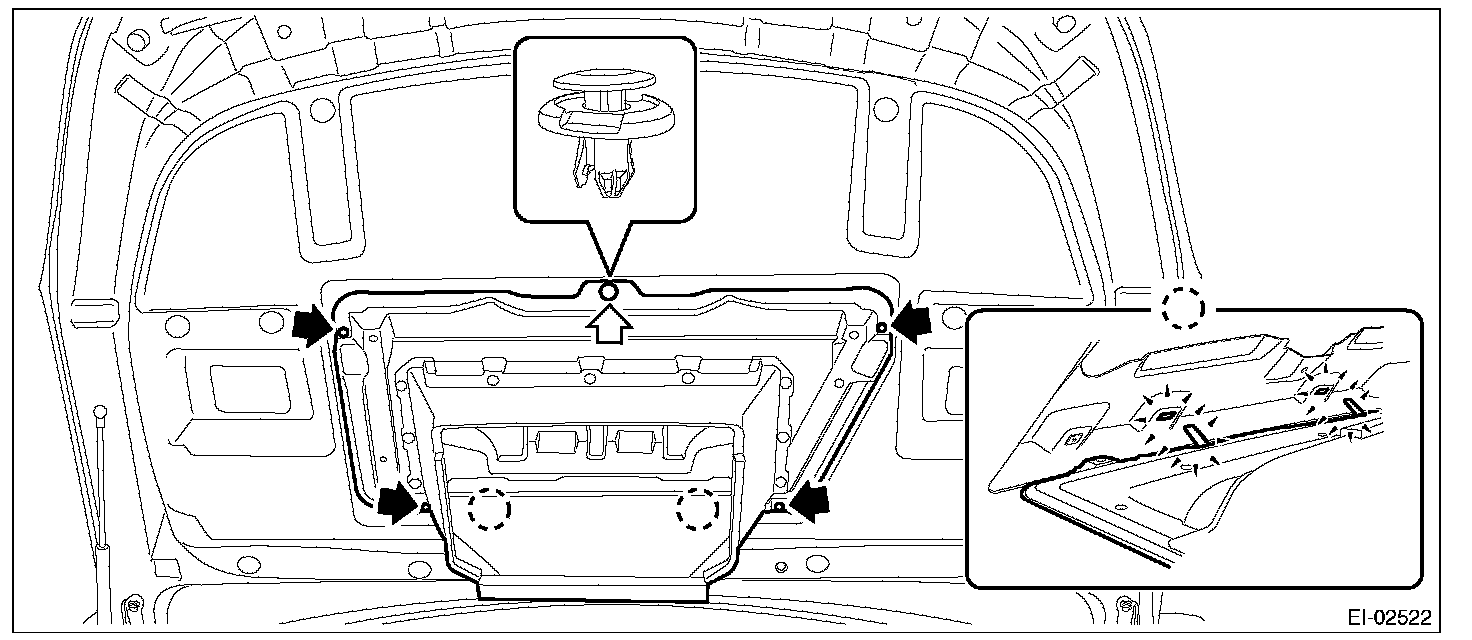

1. Remove the screws.

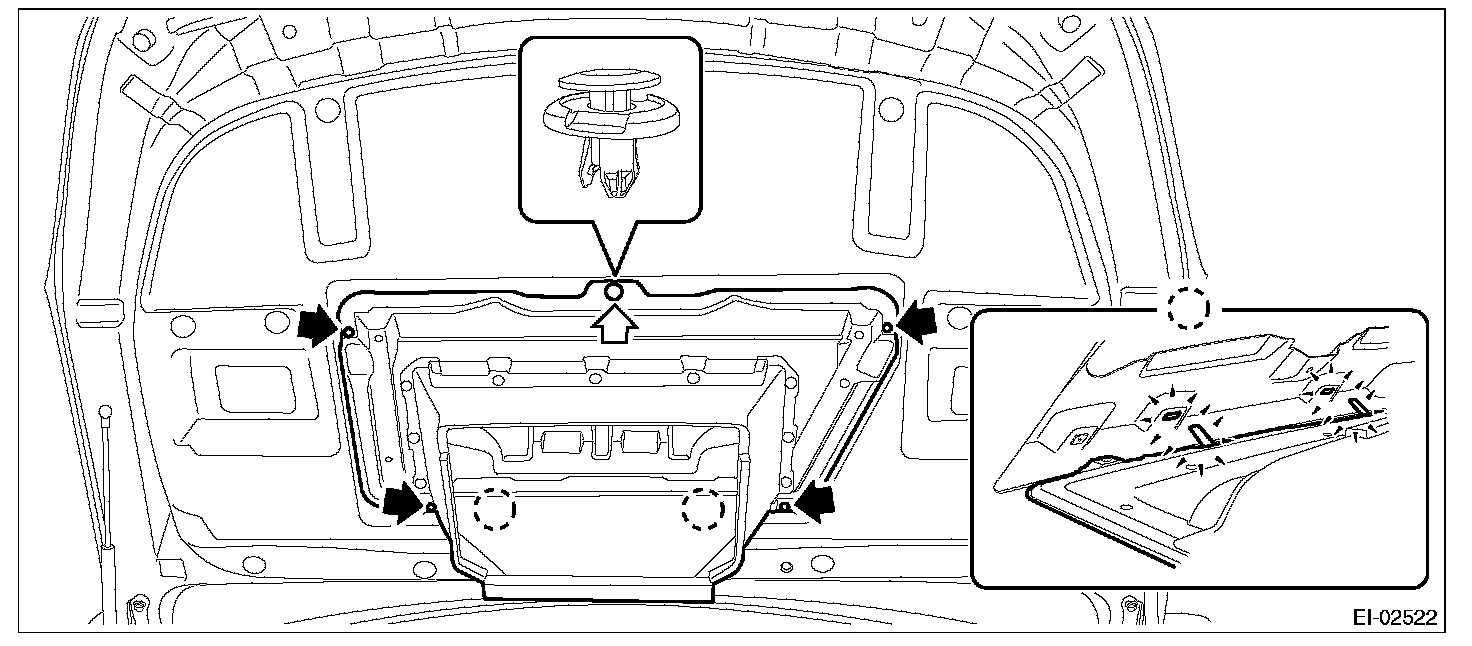

2. Remove the clips and remove the hood duct assembly.

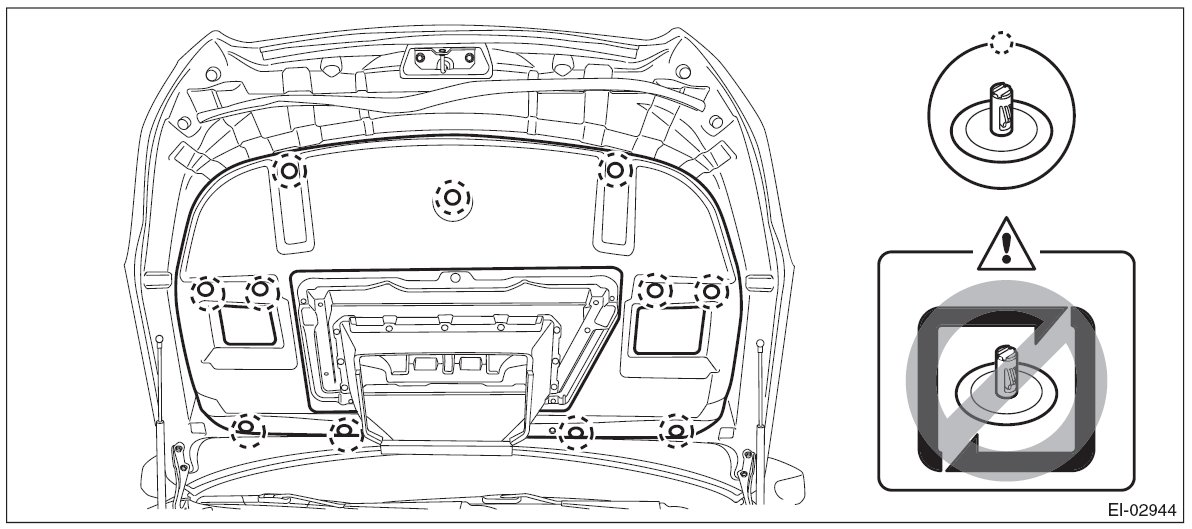

3. Release the clips to remove the front hood insulator.

CAUTION: Do not reuse any clips damaged during removal. The damaged clip cannot fix the insulator securely. Therefore, always replace with a new part.







4. Remove the front hood grille.

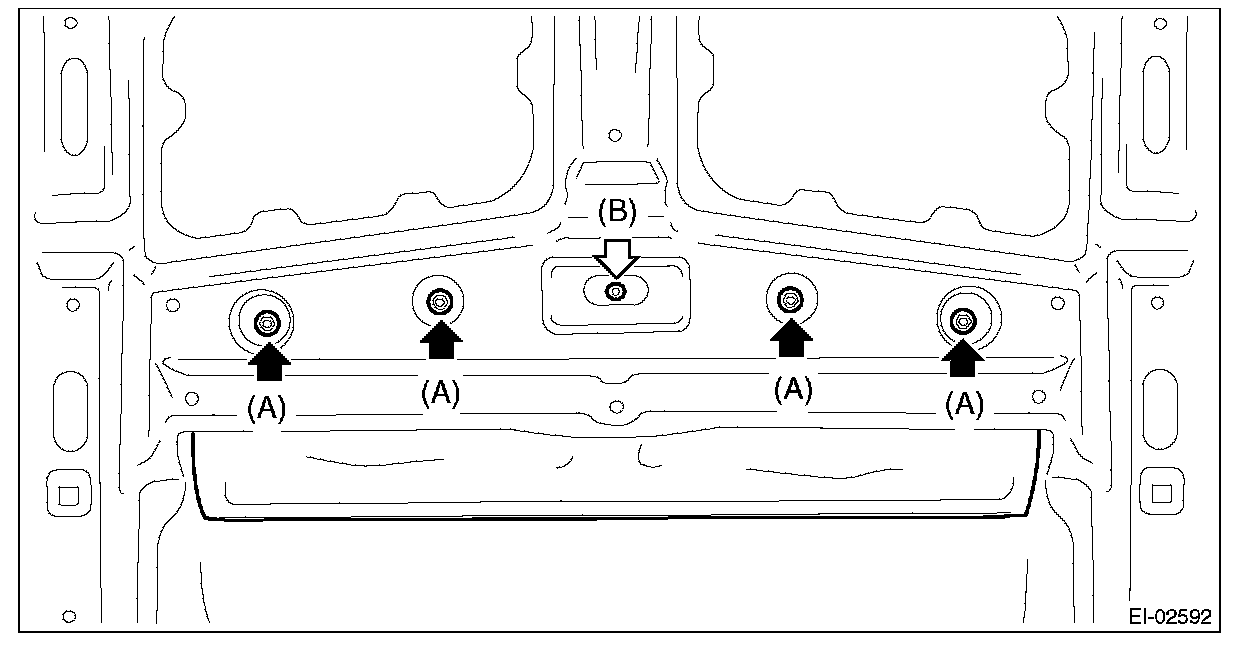

1. Remove the nuts (A).
2. Remove clip (B), and remove the front hood grille.







INSTALLATION

Install each part in the reverse order of removal.

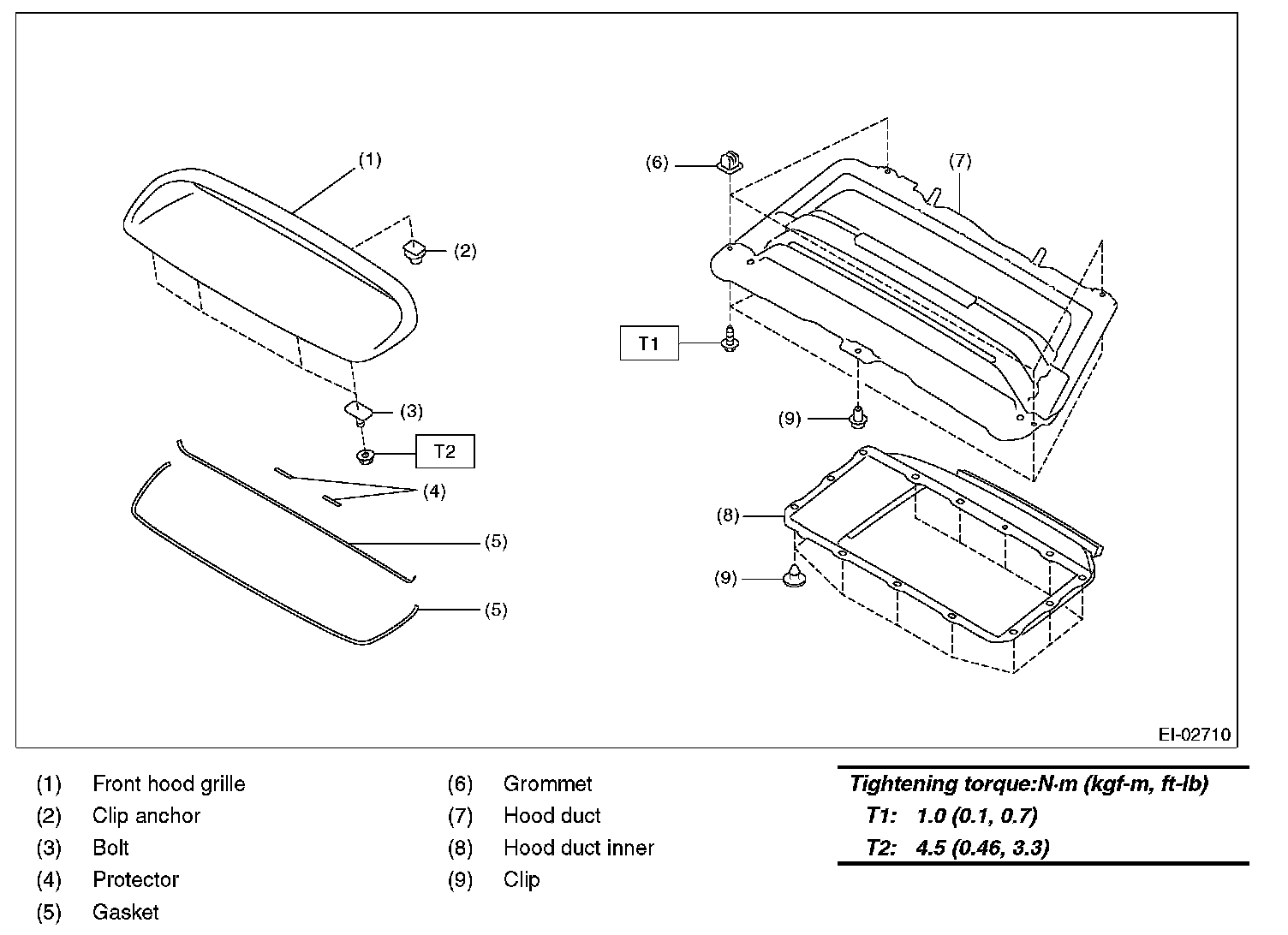

Tightening torque: Refer to "COMPONENT" of "General Description". [Ref. to FRONT HOOD GRILLE, COMPONENT, General Description.]

NOTE: Make sure that the front hood duct claws are inserted in the holes on the front hood.
