Crankshaft Gear/Sprocket: Service and Repair
Crank SprocketREMOVAL
NOTE:
When replacing a single part, perform the work with the engine installed to body.
1) Remove the crank pulley.
2) Remove the timing belt cover.
3) Remove the timing belt.
4) Remove the crank sprocket.
INSTALLATION
1) Install the crank sprocket.
2) Install the timing belt.
3) Install the timing belt cover.
4) Install the crank pulley.
INSPECTION
1) Check the crank sprocket teeth for abnormal wear and scratches.
2) Make sure there is no free play between crank sprocket and key.

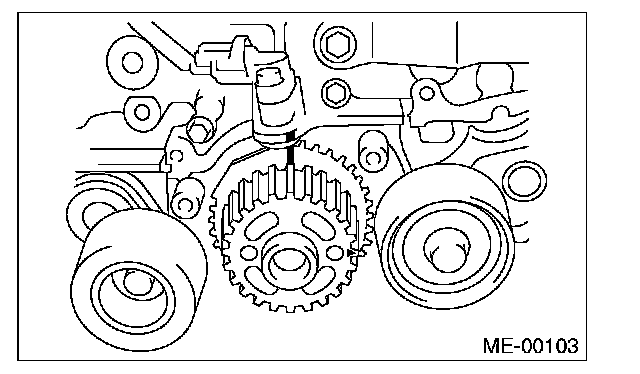

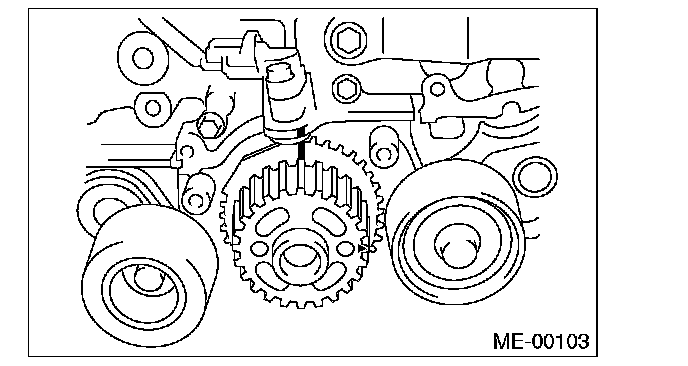

3) Check the crank sprocket protrusion used for sensor for damage and contamination of foreign matter.
