Windshield Washer Spray Nozzle: Adjustments

Front Washer Nozzle

ADJUSTMENT
1. Turn the wiper switch to OFF position.

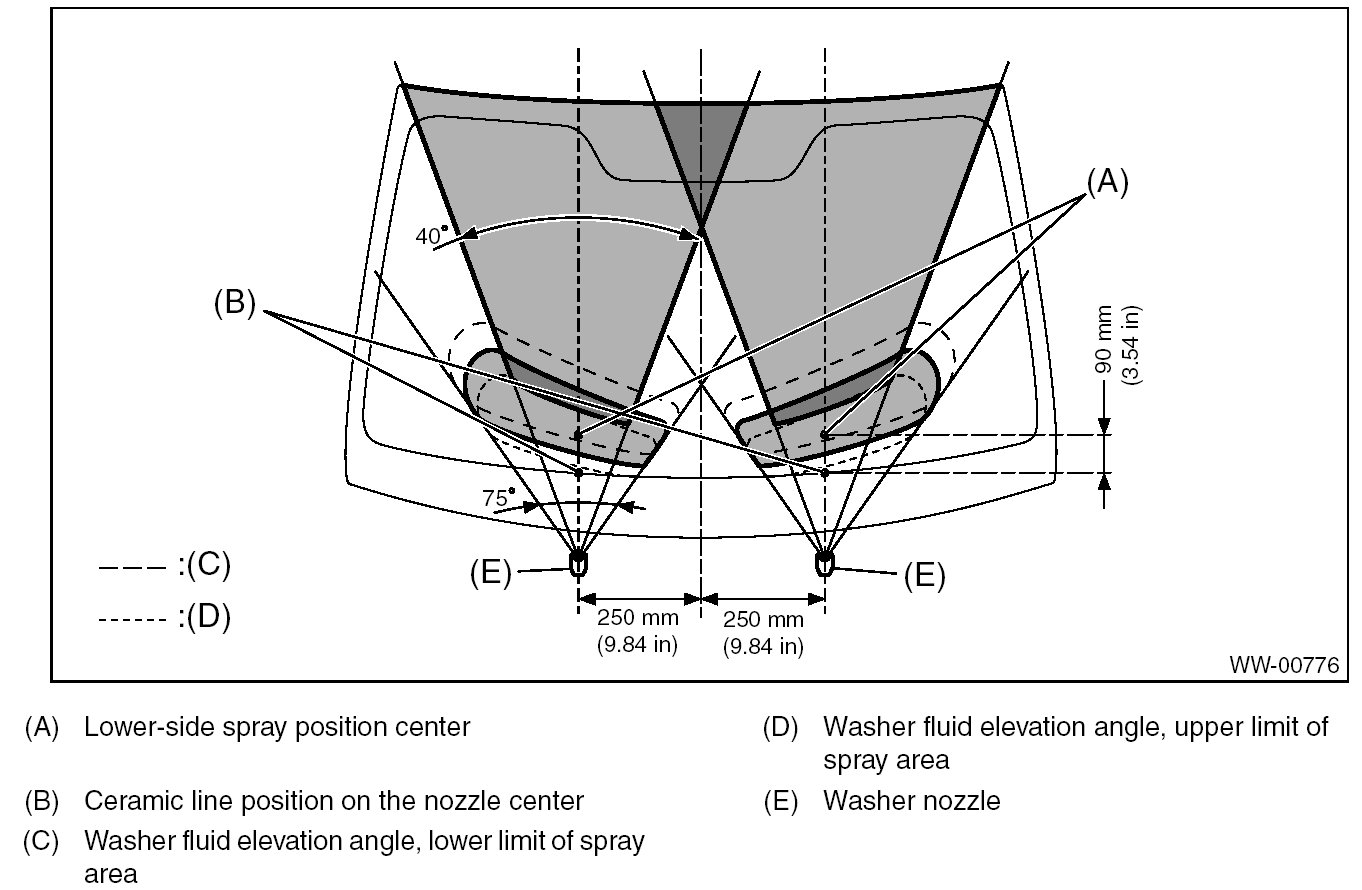

2. While the vehicle is at a standstill, adjust the washer injection position as shown in the figure.
