Installation

ATF Cooler Pipe and Hose

INSTALLATION

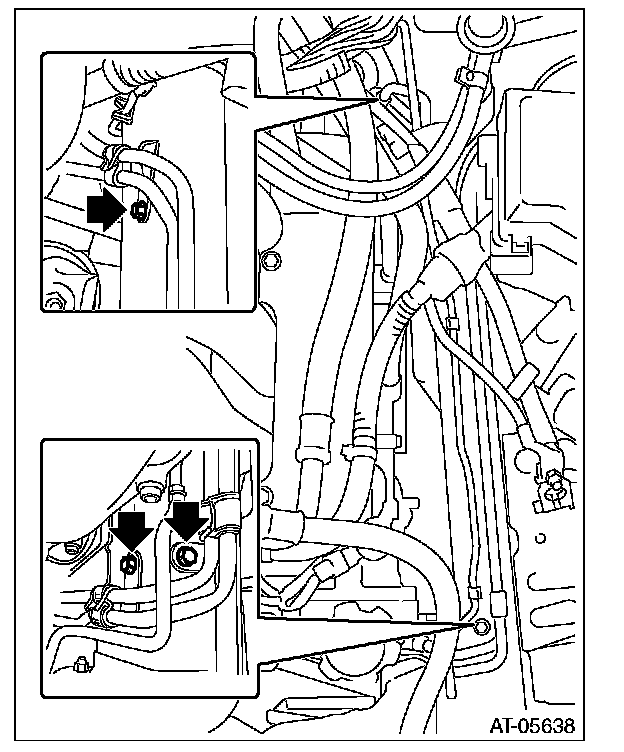

1) Install the ATF cooler pipe to frame.

CAUTION:
Be careful not to bend the A/C pipe, when installing the ATF cooler pipe.

Tightening torque:
7.5 Nm (0.8 kgf-m, 5.5 ft-lb)





2) Install the A/C pipe to clip.
3) Install the engine coolant reservoir tank.
4) Lift up the vehicle.
5) Lift up the vehicle.

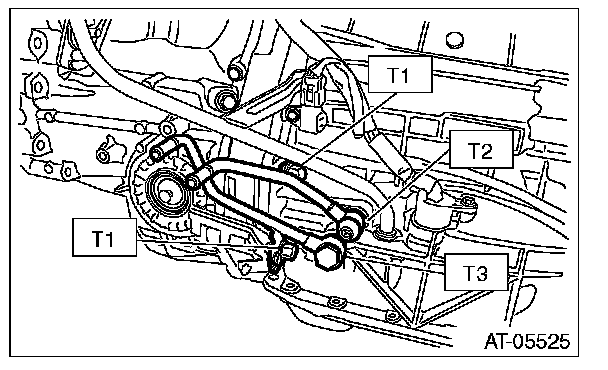

6) Install the ATF cooler inlet and outlet pipes with new gaskets.

NOTE:
Use a new bolt for the converter case joint.

Tightening torque:
T1: 38 Nm (3.9 kgf-m, 28.0 ft-lb)
T2: 40 Nm (4.1 kgf-m, 29.5 ft-lb)
T3: 45 Nm (4.6 kgf-m, 33.2 ft-lb)





7) Install the oil charge pipe.

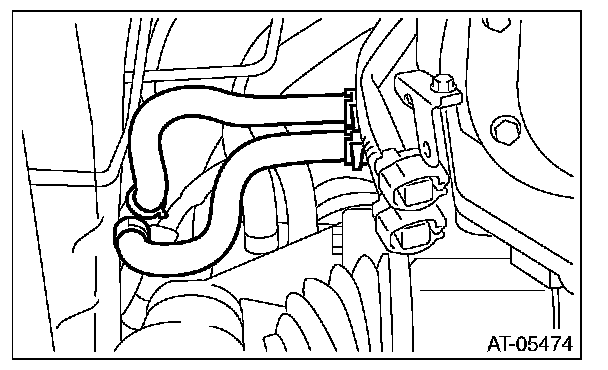

8) Connect the ATF cooler hose to the ATF cooler pipe on the transmission side.

NOTE:
^ Use a new ATF cooler hose.
^ Install so that the ATF cooler hose is not folded over, excessively bent or twisted.
^ Insert the ATF cooler hose to the specified position.

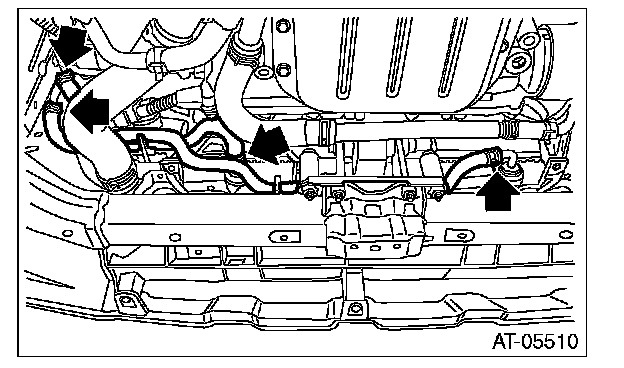

9) Connect the ATF cooler hose to the ATF cooler pipe on the radiator side.

NOTE:
^ Use a new ATF cooler hose.
^ Install so that the ATF cooler hose is not folded over, excessively bent or twisted.
^ Insert the ATF cooler hose to the specified position.





10) Install the front exhaust pipe.
11) Install the under cover.
12) Lower the vehicle.
13) Install the battery.
14) Check the ATF level.

NOTE:
Make sure there are no ATF leaks in joints between the transmission, radiator, ATF cooler pipes, and ATF cooler hoses.

15) Install the collector cover.
