Removal
Torque Converter AssemblyREMOVAL 1)
Remove the transmission assembly from vehicle body.
2)

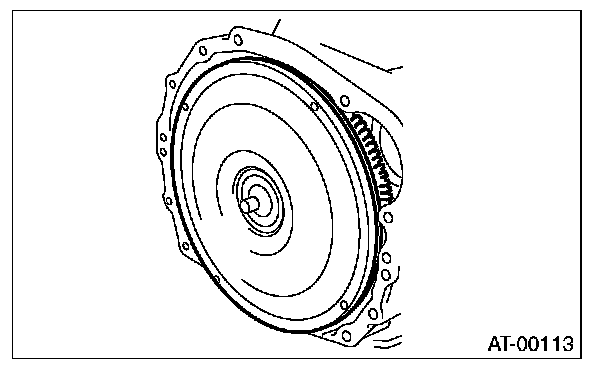

Pull out the torque converter and oil pump shaft horizontally.
NOTE: ^
Be sure not to scratch the inside of bushing in oil pump shaft.
^
Be careful that the oil pump shaft may drawn out simultaneously.
3)
Remove the oil pump shaft from torque converter as necessary.
