Tailgate Latch: Testing and Inspection

Rear Gate Latch and Actuator Assembly

INSPECTION

1. REAR GATE LATCH
Check if the rear gate latch operates normally.
- If latch deformation, abnormal wear, or unsmooth lock operation is observed, replace the rear gate latch & actuator assembly.

2. LOCK ACTUATOR
1. Disconnect the harness connector of rear gate latch and actuator assembly.

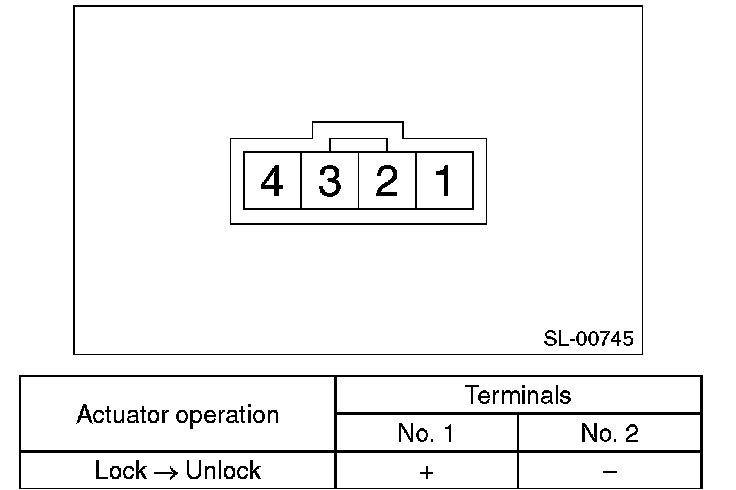

2. Connect the battery between the rear gate latch and actuator assembly terminals.






3. If the actuator does not operate normally, replace the rear gate latch & actuator assembly.
