Cabin Temperature Sensor / Switch: Service and Repair
In-Vehicle Sensor (Auto A/C Model)
REMOVAL
CAUTION: Be careful not to damage the sensors and interior trims when removing. 1.
Disconnect the ground cable from battery.
2.
Remove the instrument panel lower cover.
3.

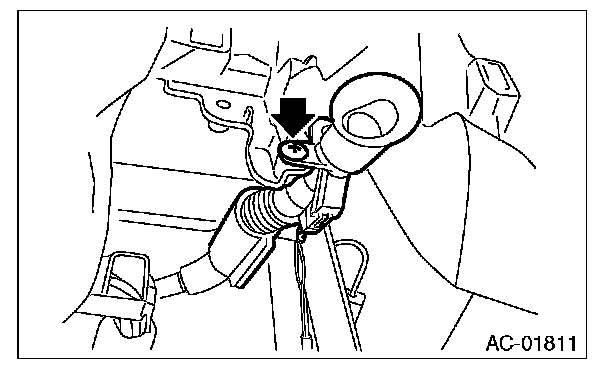

Remove the screws.
4.
Remove the screws.
INSTALLATIONInstall each part in the reverse order of removal.
