Backup Light Bulb: Service and Repair

Back-up Light Bulb

REMOVAL

1. 4 DOOR MODEL
1. Disconnect the ground cable from battery.
2. Remove the trunk room side trim cover.

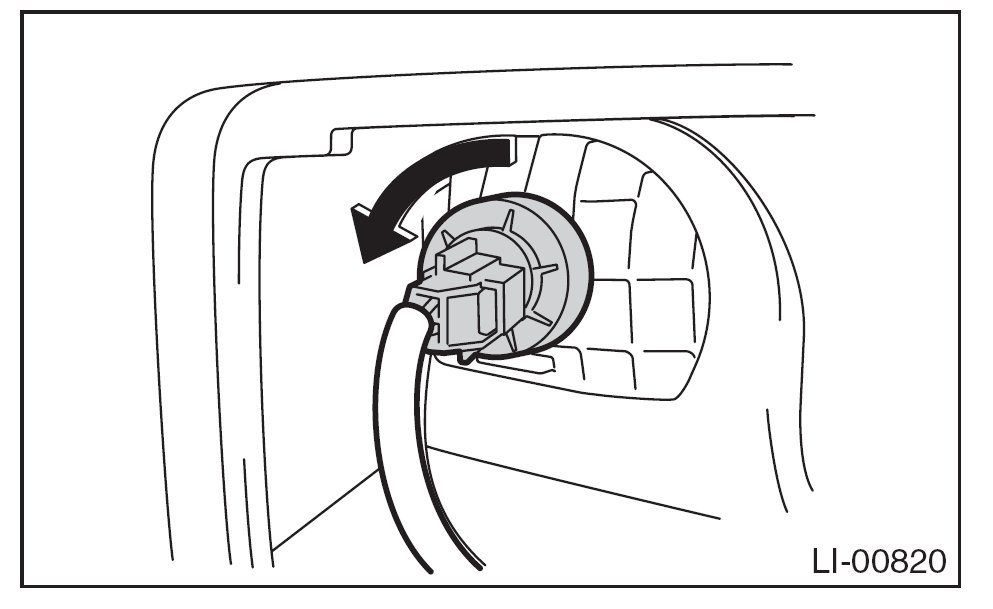

3. Turn the socket and remove the bulb.






2. 5 DOOR MODEL

NOTE: For models with a rear fog light, the back-up light is installed on the passenger's side.

1. Disconnect the ground cable from battery.
2. Remove the bulb inspection cover of the rear gate trim.
3. Turn the socket and remove the bulb.






INSTALLATION

Install each part in the reverse order of removal.
