Fog/Driving Lamp: Testing and Inspection

Front Fog Light System

INSPECTION

1. FRONT FOG LIGHT SWITCH
Measure the resistance between front fog light switch terminals. Testing and Inspection

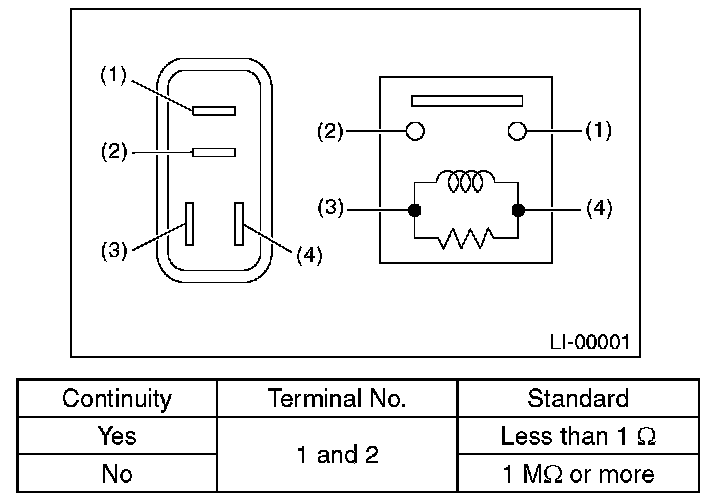

2. FRONT FOG LIGHT RELAY
1. Connect terminal No. 4 to the battery positive terminal and the terminal No. 3 to the battery negative terminal, and check the resistance value between the front fog light relay terminals.

2. Replace the front fog light relay if it is found defective.
