Removal and Replacement

Starter

REMOVAL

1. Disconnect the ground cable from battery.

2. Remove the air intake chamber.

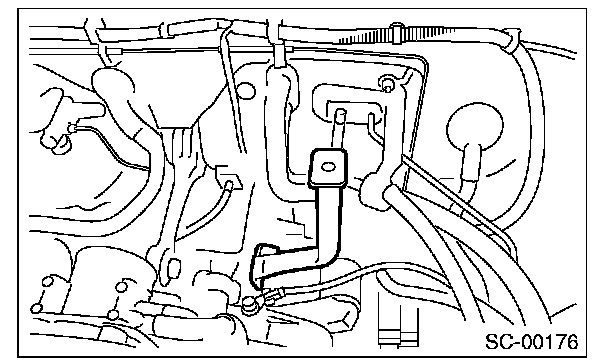

3. Remove the air intake chamber stay LH.
- MT model

- AT model

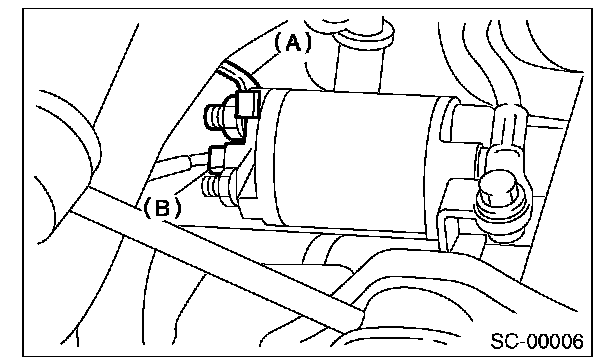

4. Disconnect the connector (B) and terminal (A) from starter.

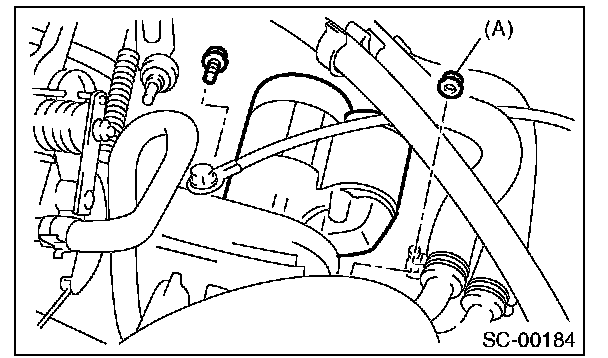

5. Remove the starter from transmission.

NOTE: For the MT model, a bolt is used in place (A).

INSTALLATION

Install in the reverse order of removal.

NOTE: For the MT model, a bolt is used in place (A).

Tightening torque: 50 N.m (5.1 kgf.m, 36.9 ft.lb)
