Center Console
Center ConsoleREMOVAL 1.
Remove the control panel.
2.
Remove the instrument panel lower cover.
3.
Remove the glove box.
4.
Remove the
console box.
5.

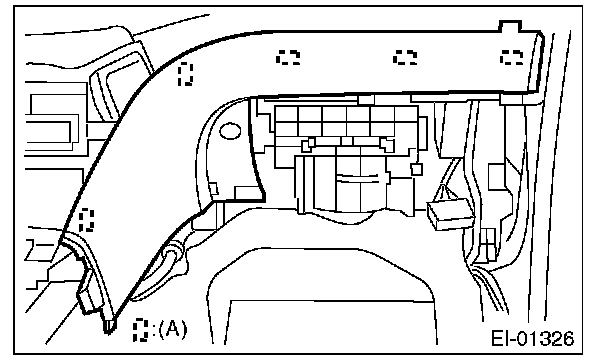

Remove the screws and clips (A) to remove the
console side panel upper.
-
Driver's side
-

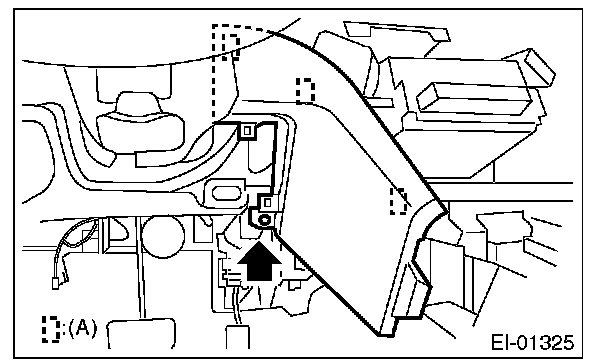

Passenger's side
INSTALLATIONInstall in the reverse order of removal.
