Console Box

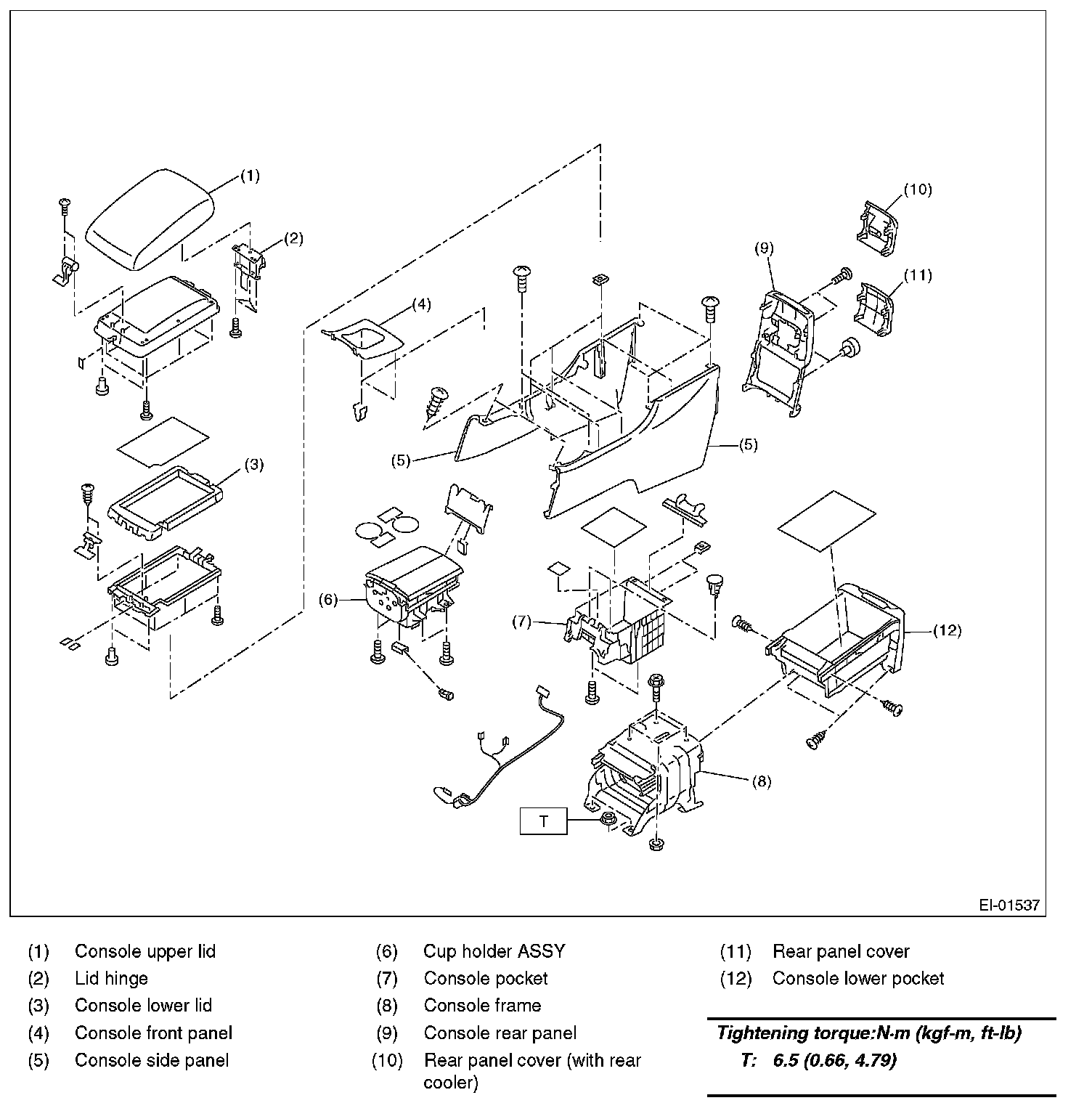

Console BoxConsole Box:
REMOVAL 1.

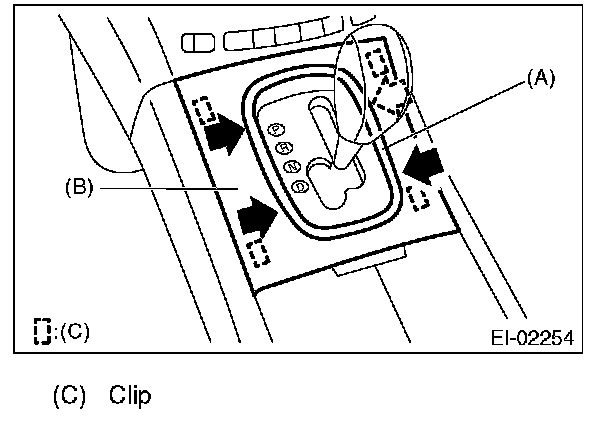

Remove the ring indicator (A) and
console front panel (B).
NOTE: The ring indicator can be easily removed by inserting the clip remover or equivalent into the positions indicated by arrows.
2.

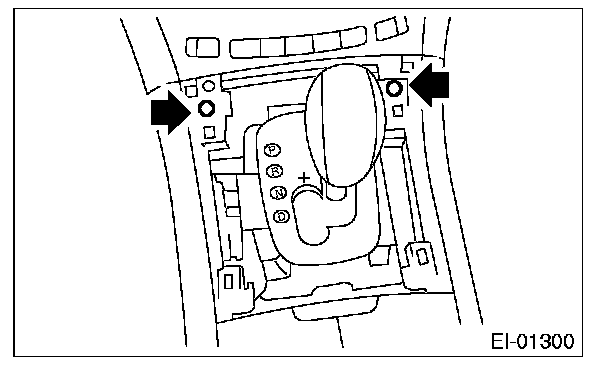

Remove the screws.
3.

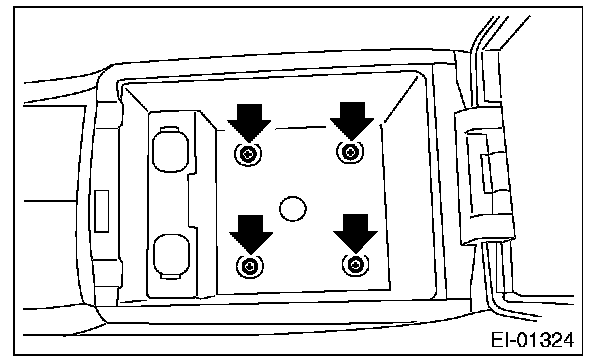

Remove the bolts inside the upper pocket.
4.
Pull out the
console lower pocket, and remove the console box.
INSTALLATIONInstall in the reverse order of removal.
