Inspection
Subaru Select MonitorINSPECTIONCOMMUNICATION FOR INITIALIZING IMPOSSIBLEDETECTING CONDITION:Defective harness connector
TROUBLE SYMPTOM:Not communicable with Subaru Select Monitor.

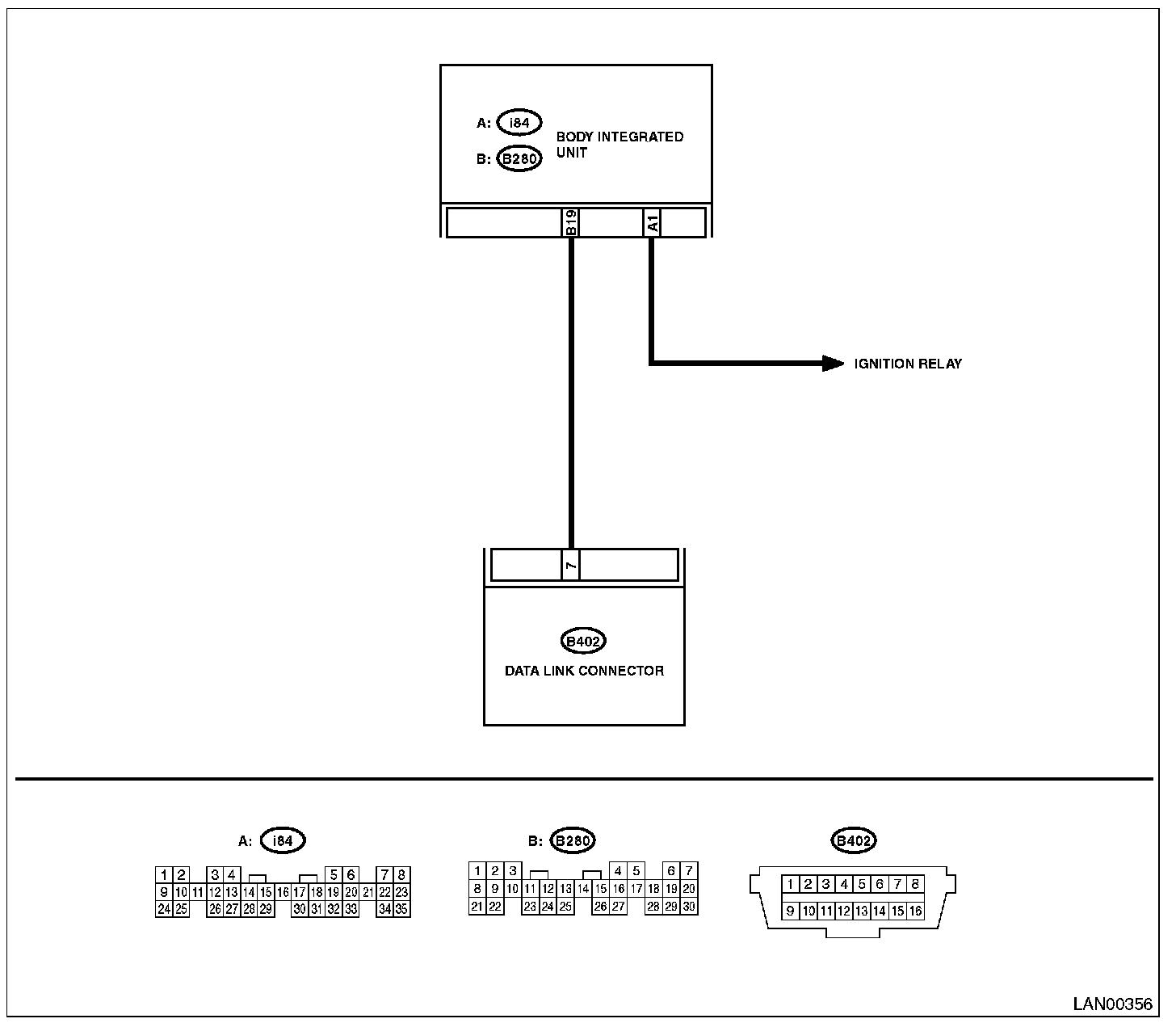

WIRING DIAGRAM:CAUTION: When replacing body integrated unit on the model with immobilizer system, refer to the "PC application help for Subaru Select Monitor"
