Removal and Replacement

Generator

REMOVAL

1. Remove the collector cover.
2. Disconnect the ground cable from battery.

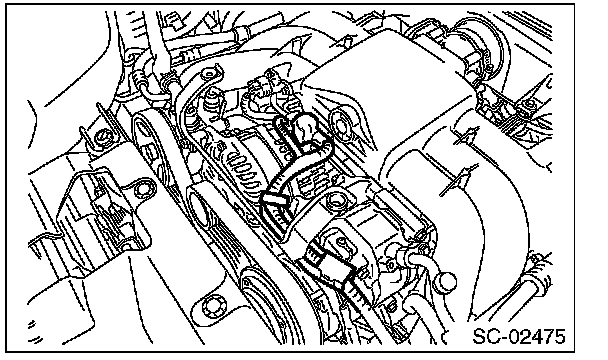

3. Disconnect the connector and terminal B from the generator, and remove the harness cover from the collector cover bracket.

4. Remove the V-belt.

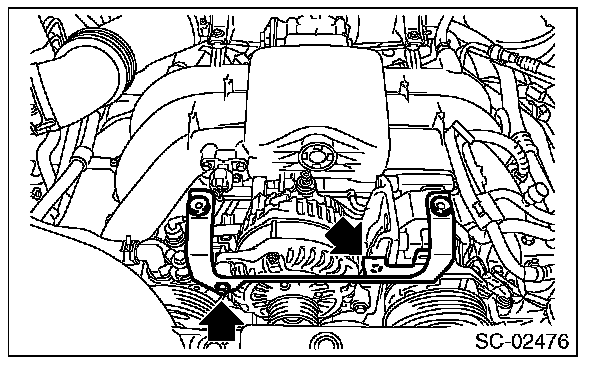

5. Remove the collector cover bracket.

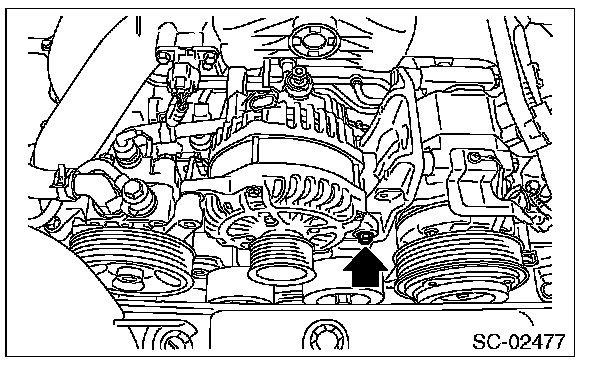

6. Remove the generator.

INSTALLATION

Install in the reverse order of removal.

CAUTION: Check and adjust the V-belt tension.

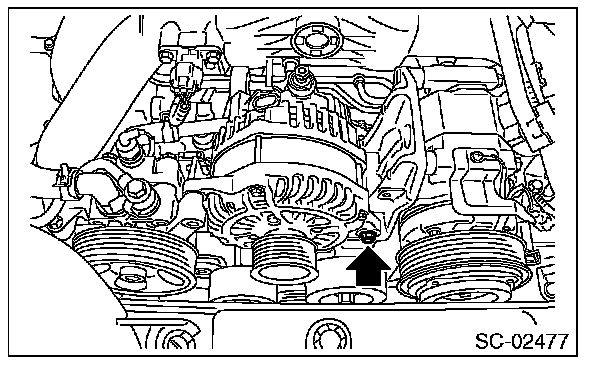

Tightening torque: 25 N.m (2.5 kgf.m, 18.4 ft.lb)

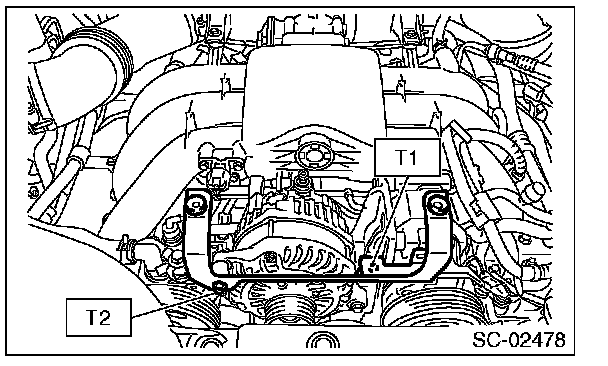

Tightening torque:
T1: 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
T2: 25 N.m (2.5 kgf.m, 18.4 ft.lb)

Tightening torque: 16 N.m (1.6 kgf.m, 11.8 ft.lb)
