Installation
ATF Cooler Pipe and HoseINSTALLATION

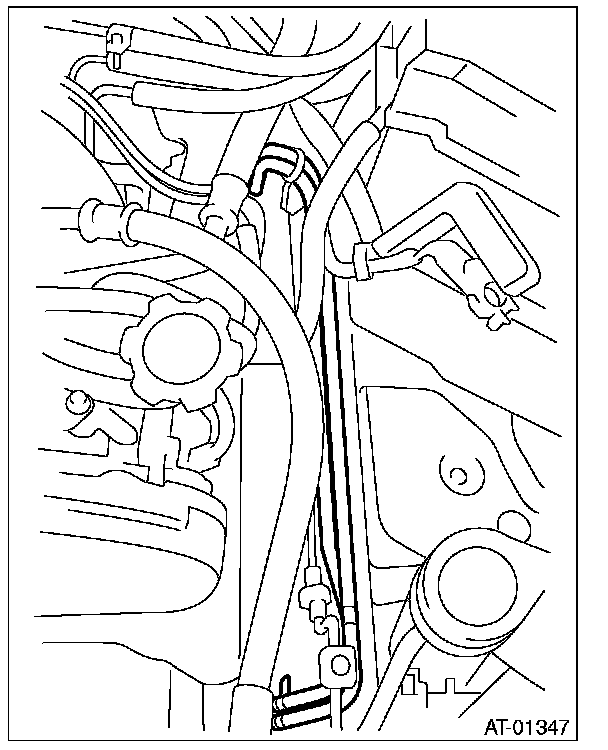

1) Install the ATF cooler pipe to frame.
Tightening torque:
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)

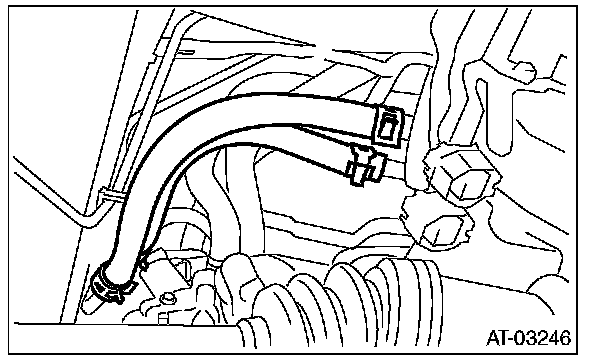

2) Attach the bolts securing the ATF cooler pipe, and attach the ATF cooler hose.
NOTE:
Use a new ATF cooler hose.
Tightening torque:
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
3) Connect the harness connector to the A/C pressure sensor.

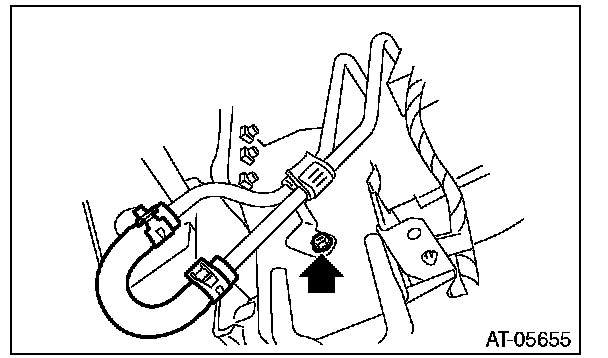

4) Disconnect the ATF cooler hose from the radiator.
NOTE:
Use a new ATF cooler hose.
5) Install the front bumper.
6) Lift up the vehicle.

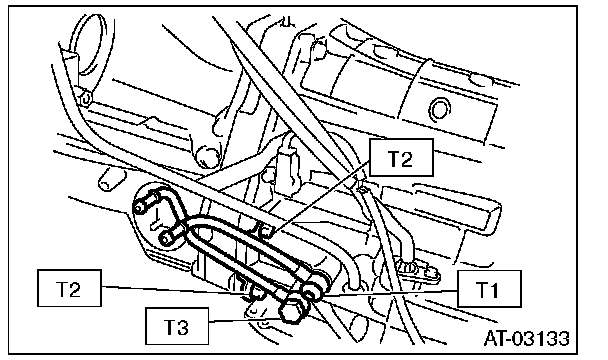

7) Install the ATF inlet pipes and outlet pipes with new washer.
NOTE:
Use a new bolt for the converter case joint.
Tightening torque:
T1: 40 Nm (4.1 kgf-m, 29.5 ft-lb)
T2: 38 Nm (3.9 kgf-m, 28.0 ft-lb)
T3: 45 Nm (4.6 kgf-m, 33.2 ft-lb)

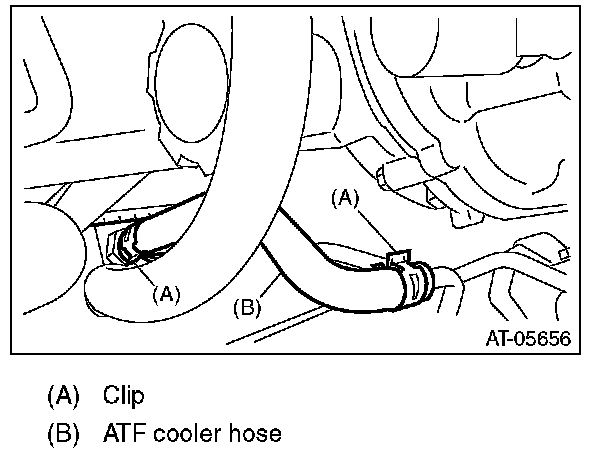

8) Connect the ATF cooler hose to the pipe on the transmission side.
NOTE:
^ Install so that the hose is not folded over, excessively bent or twisted.
^ Insert the hose to the specified position.
^ Use a new ATF cooler hose.

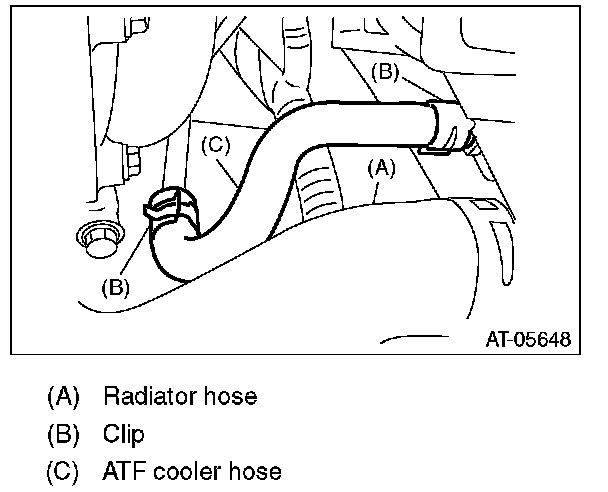

9) Connect the ATF cooler hose to the pipe on the radiator side.
NOTE:
^ Install so that the hose is not folded over, excessively bent or twisted.
^ Insert the hose to the specified position.
^ Use a new ATF cooler hose.
10) Install the front exhaust pipe.
11) Install the under cover.
12) Fill ATF.
NOTE:
Make sure there are no ATF leaks in joints between the transmission, radiator, pipes, and hoses.
