Installation
AT Shift Lock Solenoid and "P" Range SwitchINSTALLATION NOTE: For installation of the mode change switch and the shift button switch, refer to Select Levers.
"P" RANGE SWITCH Install in the reverse order of removal.

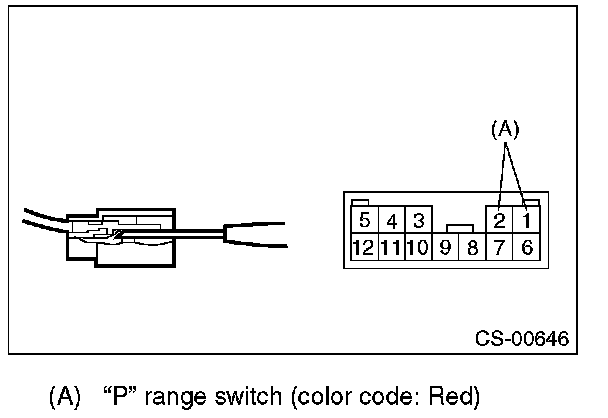

NOTE: Connect the "P" range switch terminal to connector.
AT SHIFT LOCK SOLENOID Install in the reverse order of removal.

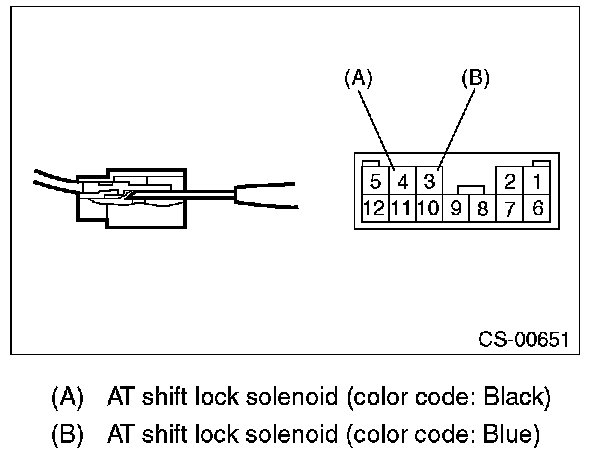

NOTE: Connect the AT shift lock solenoid switch terminal to connector.
