Timing Cover: Service and Repair
Timing Belt CoverREMOVAL
NOTE:
When replacing a single part, perform the work with the engine assembly installed to body.
1) Remove the secondary air pump.
2) Remove the crank pulley.

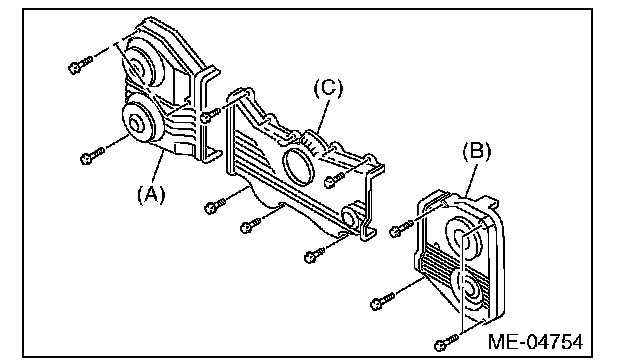

3) Remove the timing belt cover RH (A).
4) Remove the timing belt cover LH (B).
5) Remove the front timing belt cover (C).
INSTALLATION

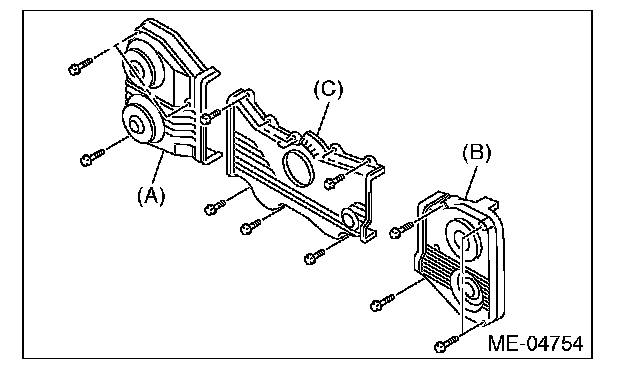

1) Install the front timing belt cover (C).
Tightening torque:
5 Nm (0.5 kgf-m, 3.7 ft-lb)
2) Install the timing belt cover LH (B).
Tightening torque:
5 Nm (0.5 kgf-m, 3.7 ft-lb)
3) Install the timing belt cover RH (A).
Tightening torque:
5 Nm (0.5 kgf-m, 3.7 ft-lb)
4) Install the crank pulley.
5) Install the secondary air pump.
INSPECTION
Check the timing belt cover for damage.
