Air Injection Pump: Testing and Inspection

SECONDARY AIR PUMP

INSPECTION

1. SECONDARY AIR PUMP
1. Check that the secondary air pump has no deformation, cracks or other damages.

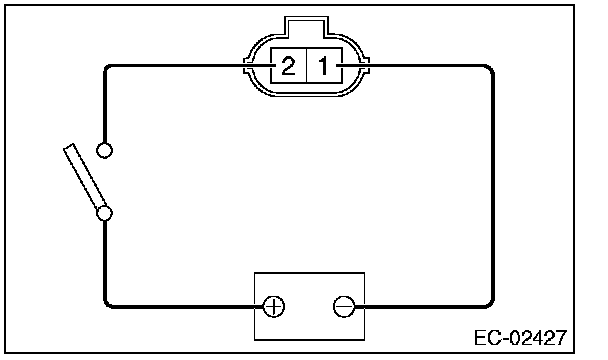

2. Connect battery positive terminal to terminal No. 2 and battery ground terminal to terminal No. 1, and inspect the secondary air pump operation.

CAUTION: Do not operate the secondary air pump continuously for 80 seconds or more.






2. OTHER INSPECTIONS
Check that the air duct or resonator has no cracks, damage or loose part.
