Headliner: Service and Repair

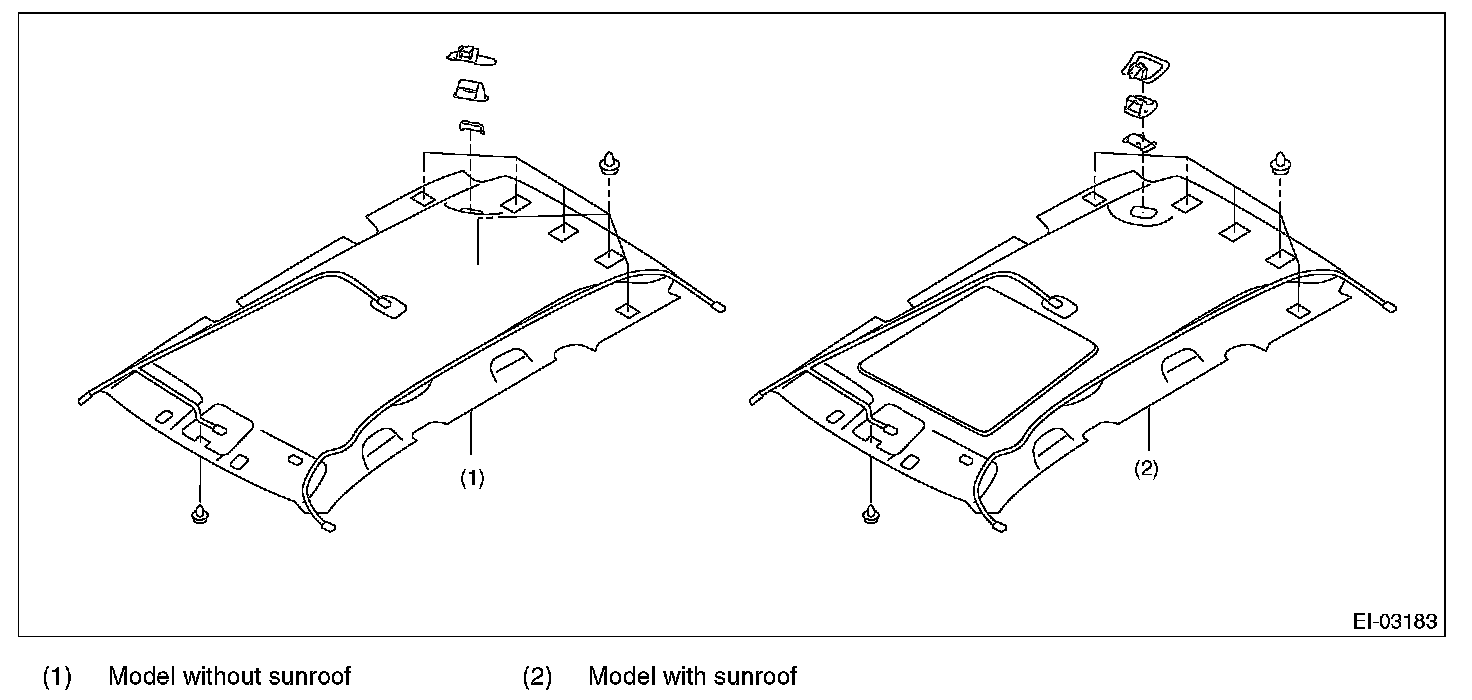

Roof Trim







REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the spot map light.
3. Remove the room light.
4. Remove the sun visor.
5. Remove the assist grip.
6. Remove the upper inner trim.
7. Remove the rear quarter trim.
8. Remove the sunroof opening trim. (model with sunroof)







9. Disconnect the harness connectors of the right and left front pillars, and the rear quarter (LH).

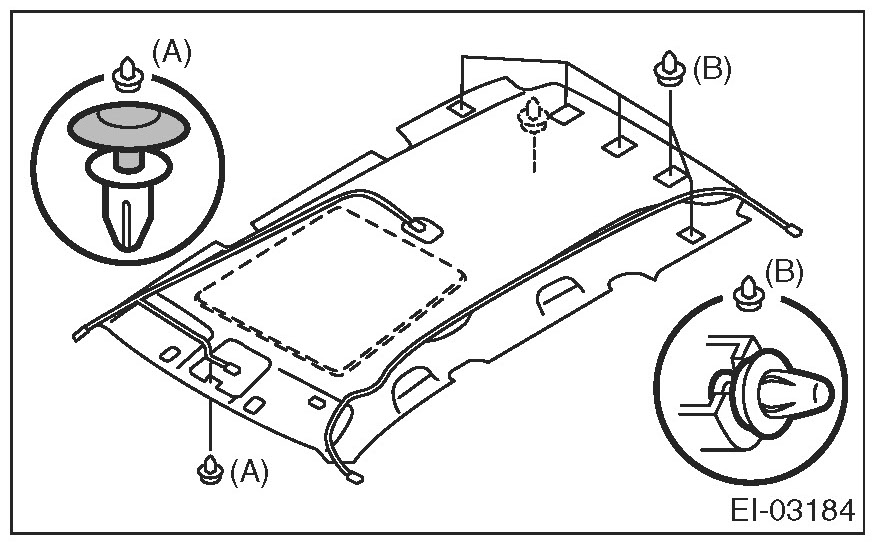

10. Remove the clips, and then remove the roof trim.







INSTALLATION

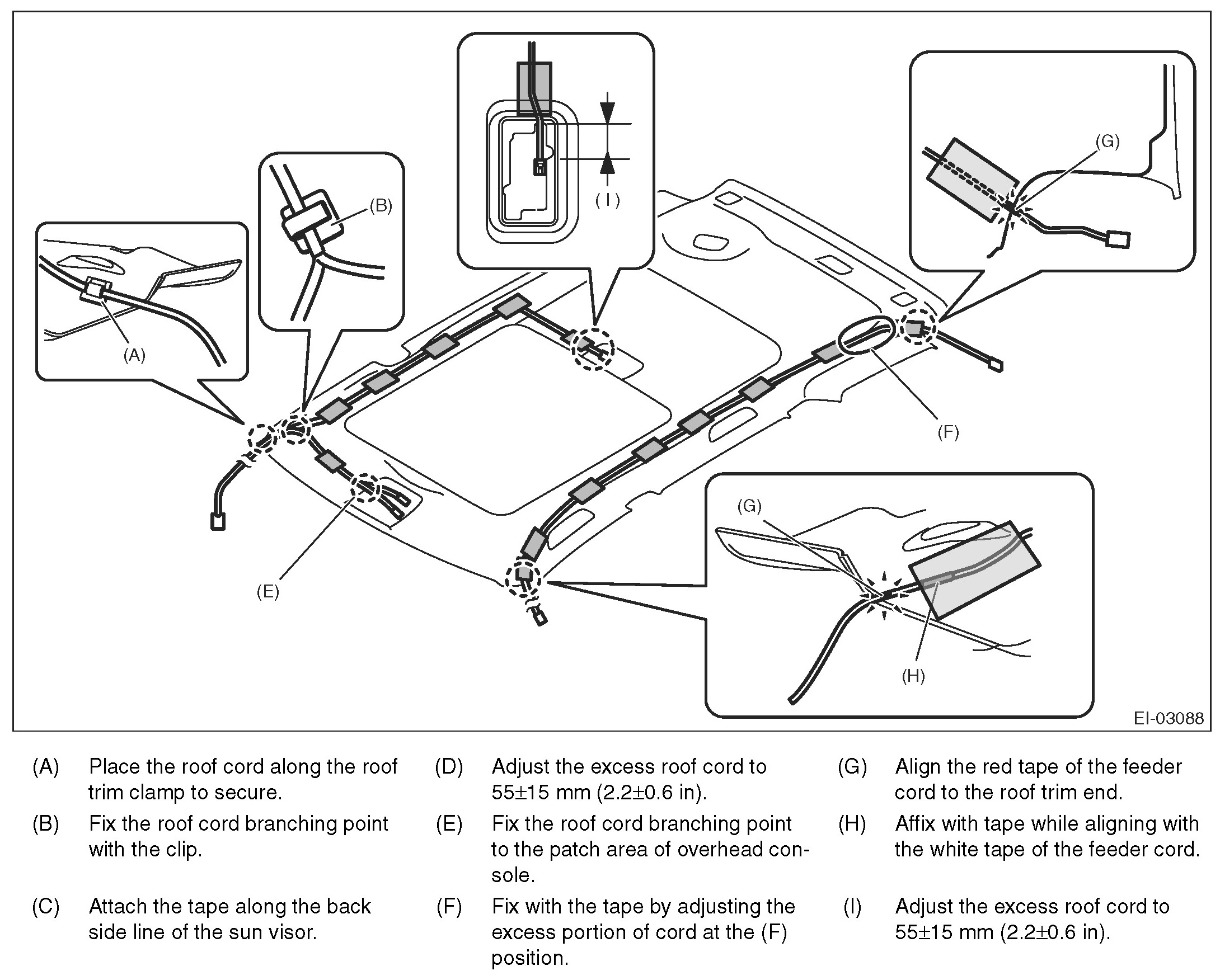

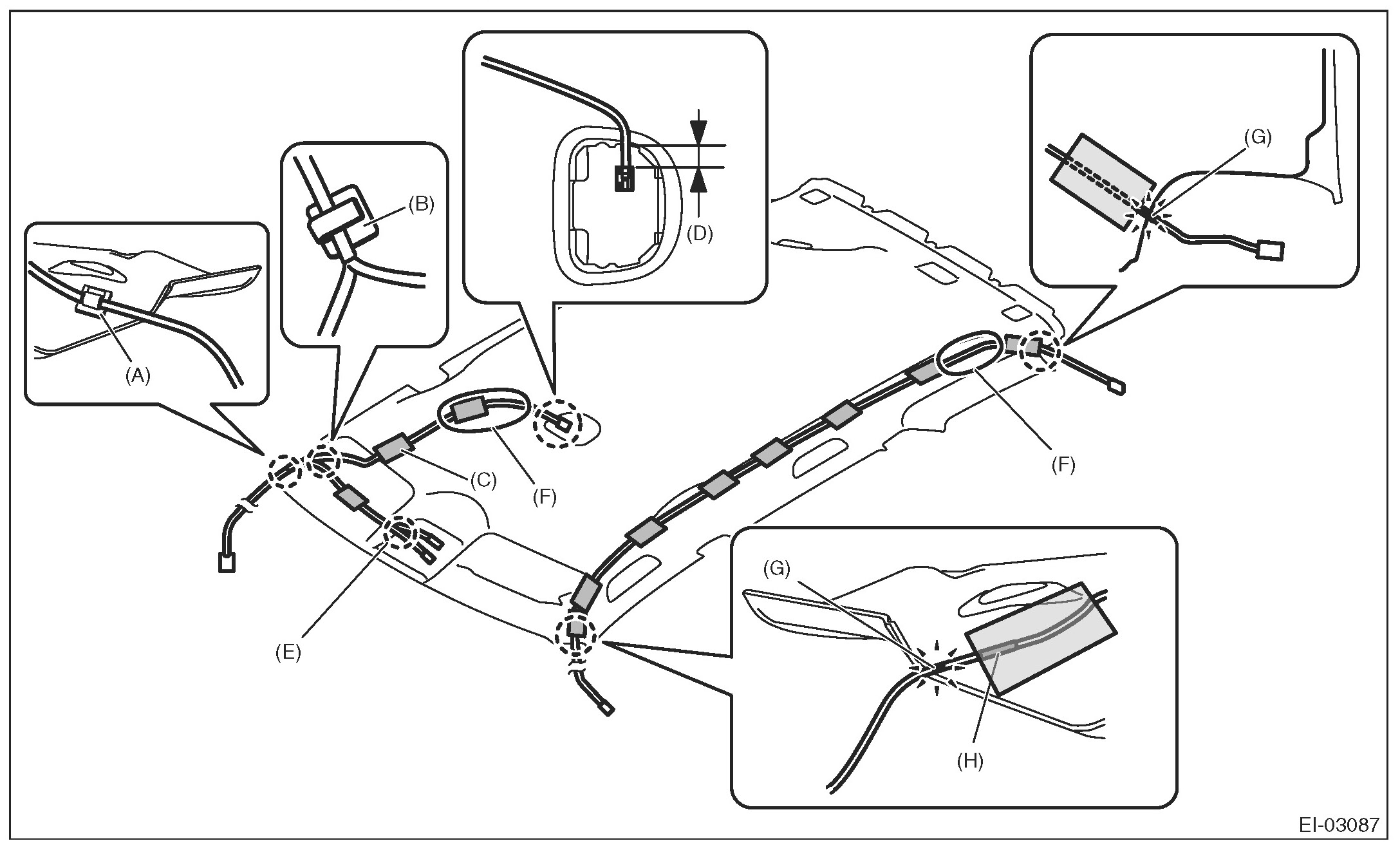

1. Apply the roof cord and feeder cord along the mark-off line of the roof trim.

Tape:
Item number: 86359SC000/TAPE

NOTE: Use the tape (service parts) by cutting into 80 mm x 50 mm (3.2 in x 2.0 in).










2. Install each part in the reverse order of removal.
