Seats: Testing and Inspection

INSPECTION

1. WIRING DIAGRAM
Refer to "Power Seat System" in the wiring diagram. [Ref. to WIRING DIAGRAM, Power Seat System.]

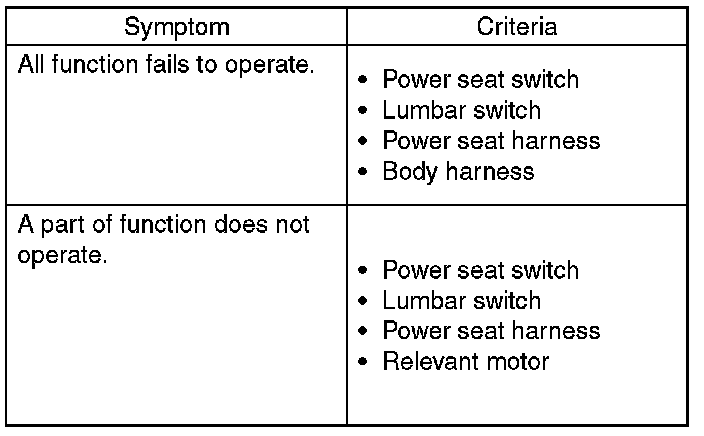

2. TROUBLE SYMPTOM
- Driver's side







3. CHECK SWITCH

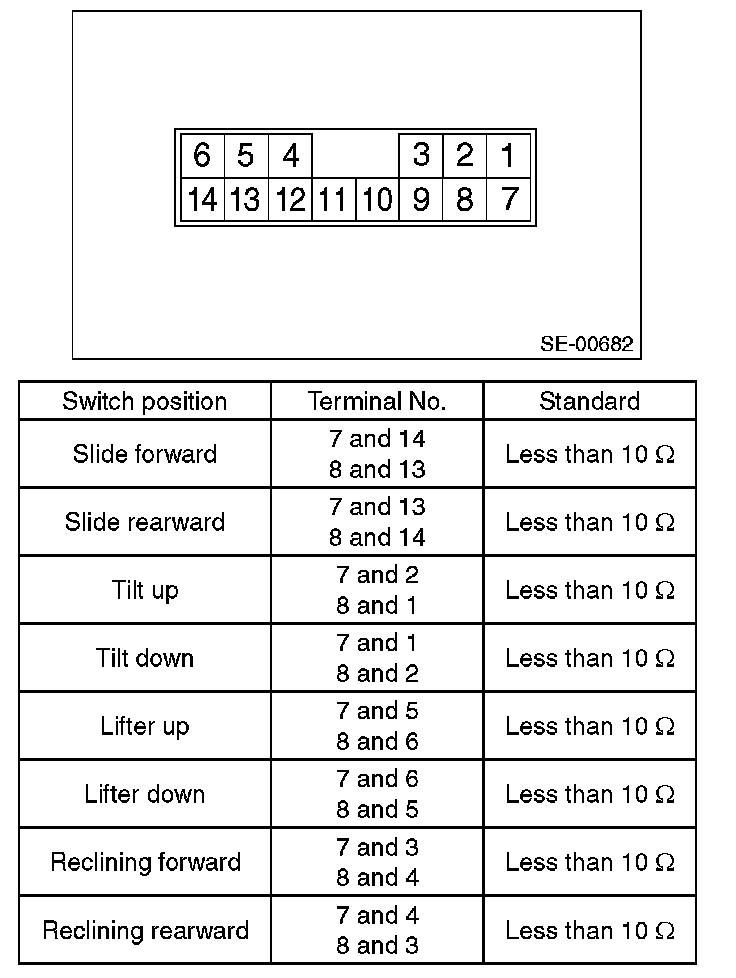

Check resistance between terminals while operating each switch.
- Power seat switch

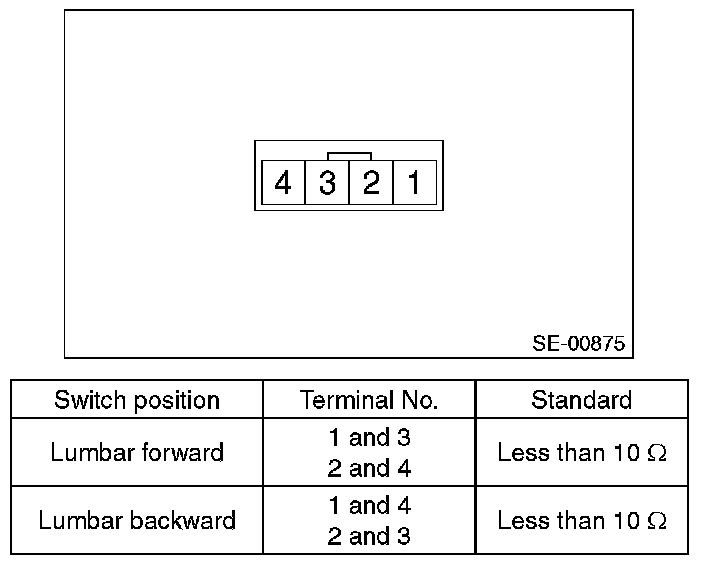

- Lumbar switch

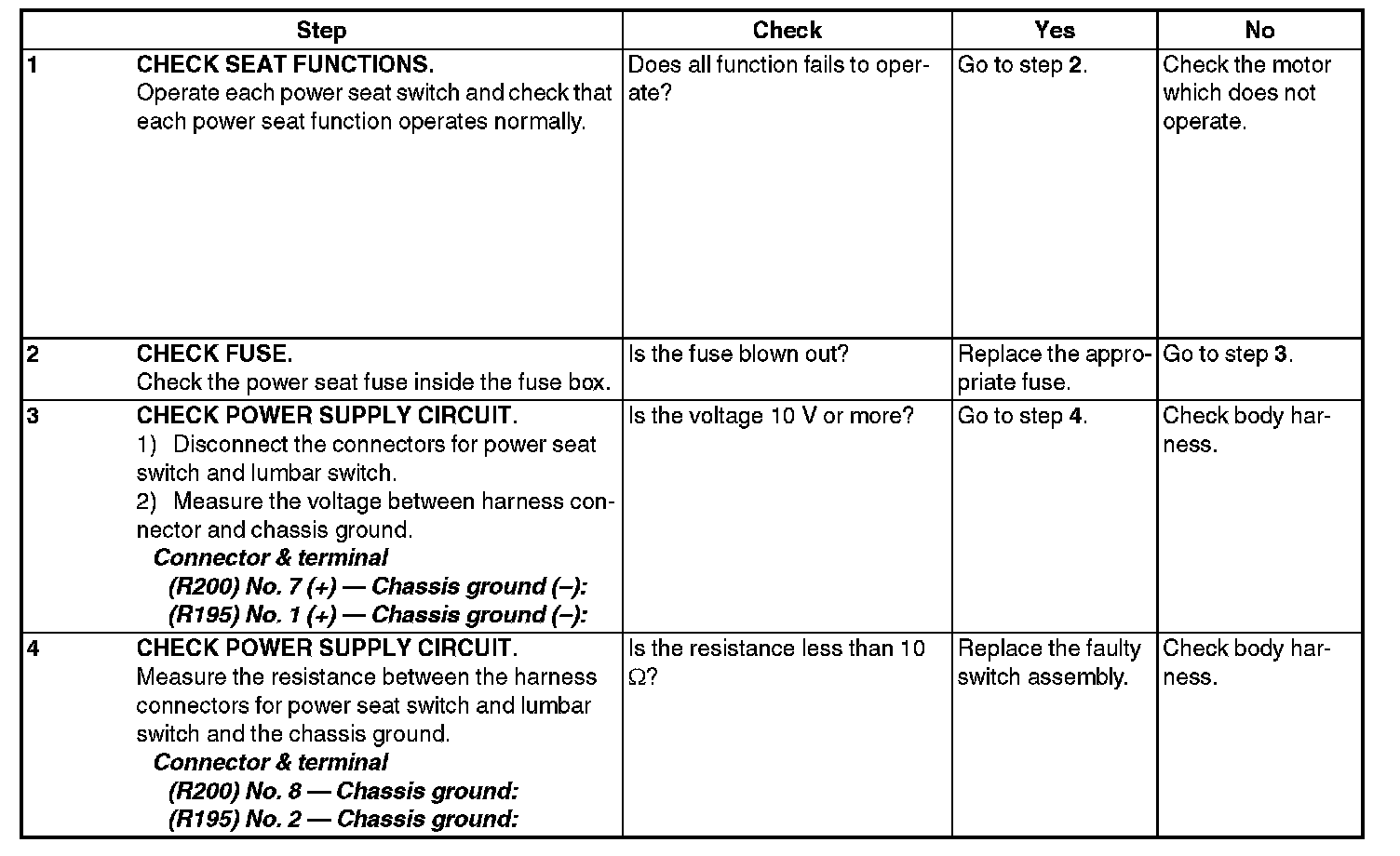

4. ALL FUNCTION FAILS TO OPERATE







5. SOME OF THE MOTORS DO NOT OPERATE (DRIVER'S SEAT)

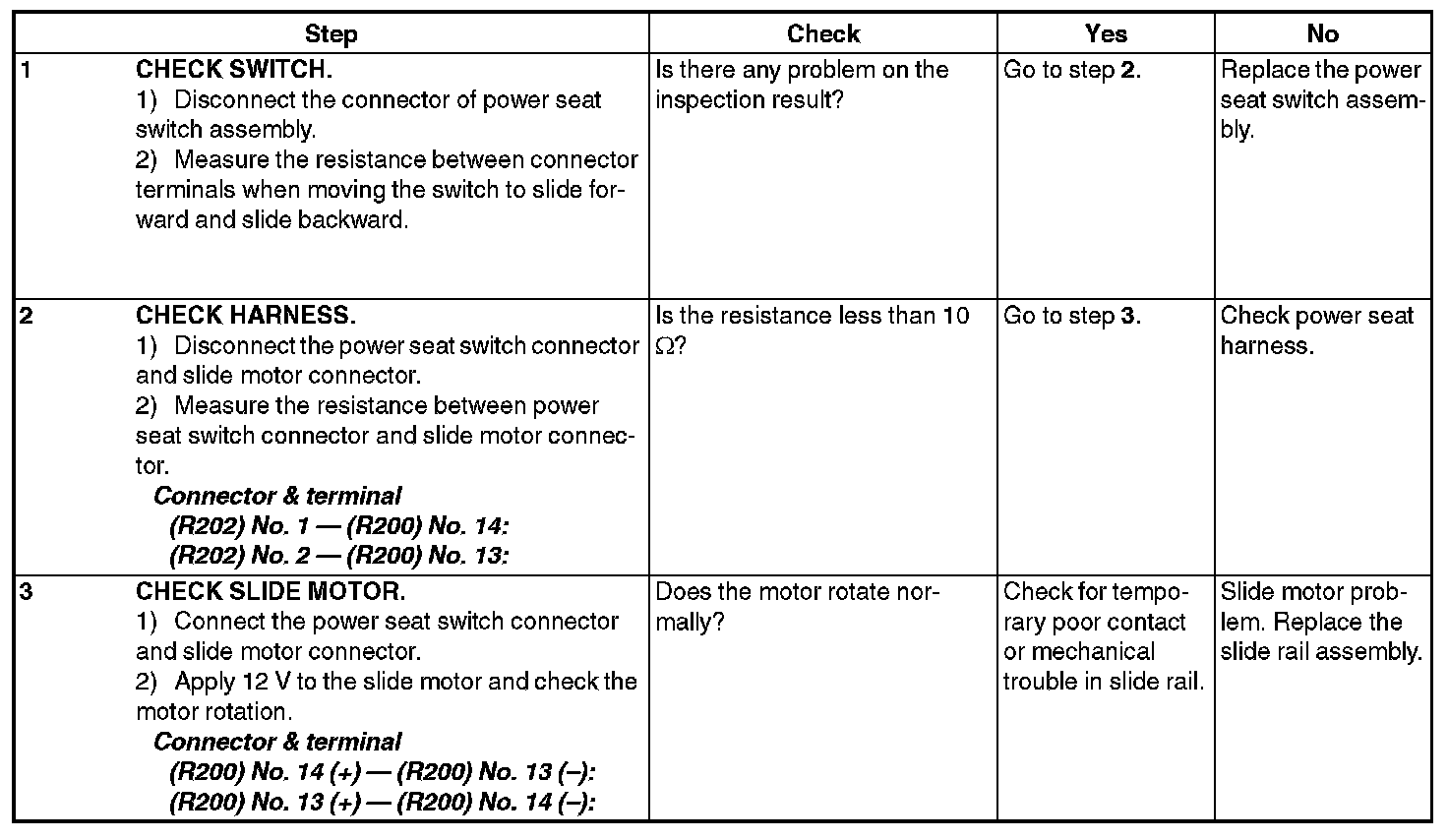

- Slide operation failure

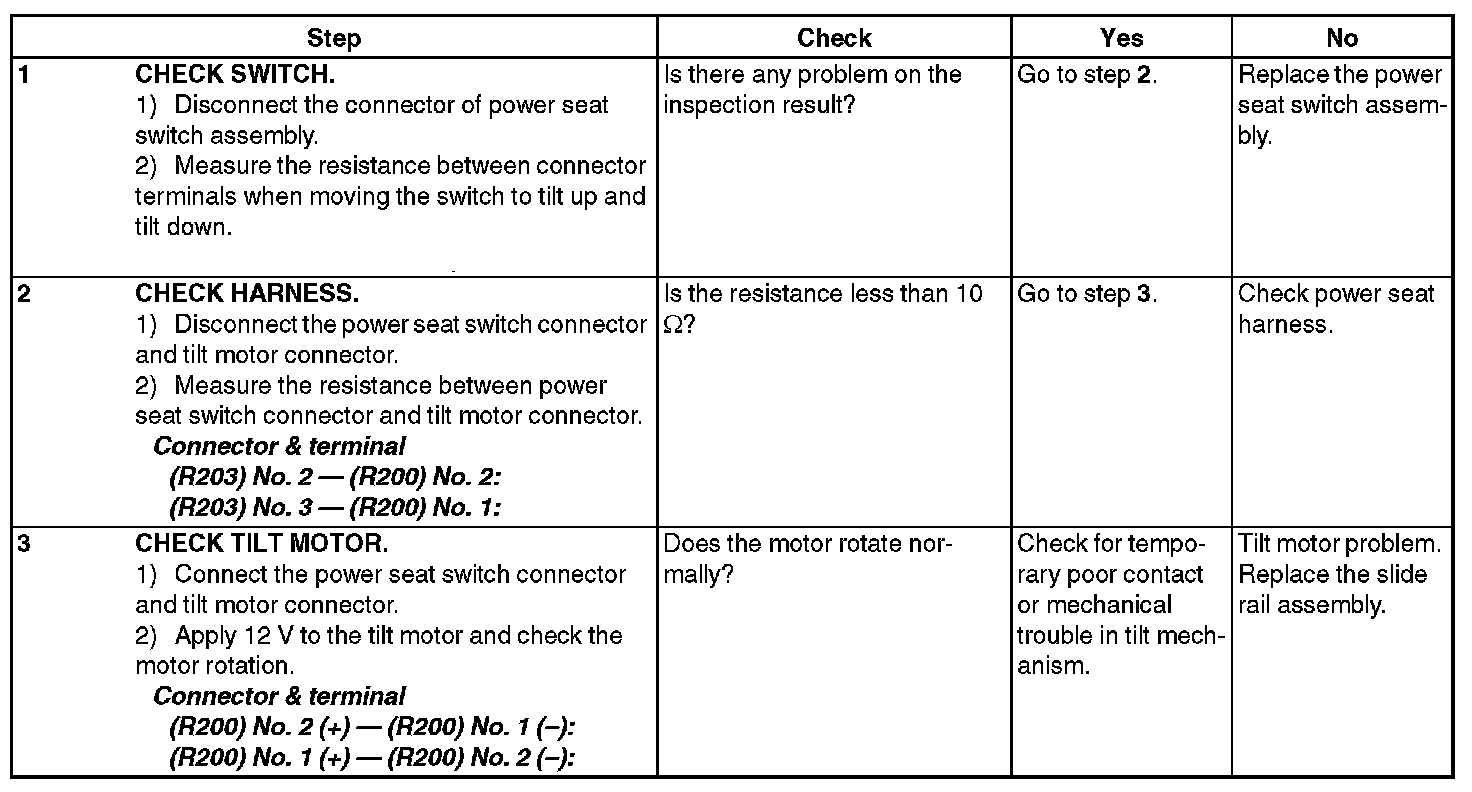

- Malfunction of tilt operation

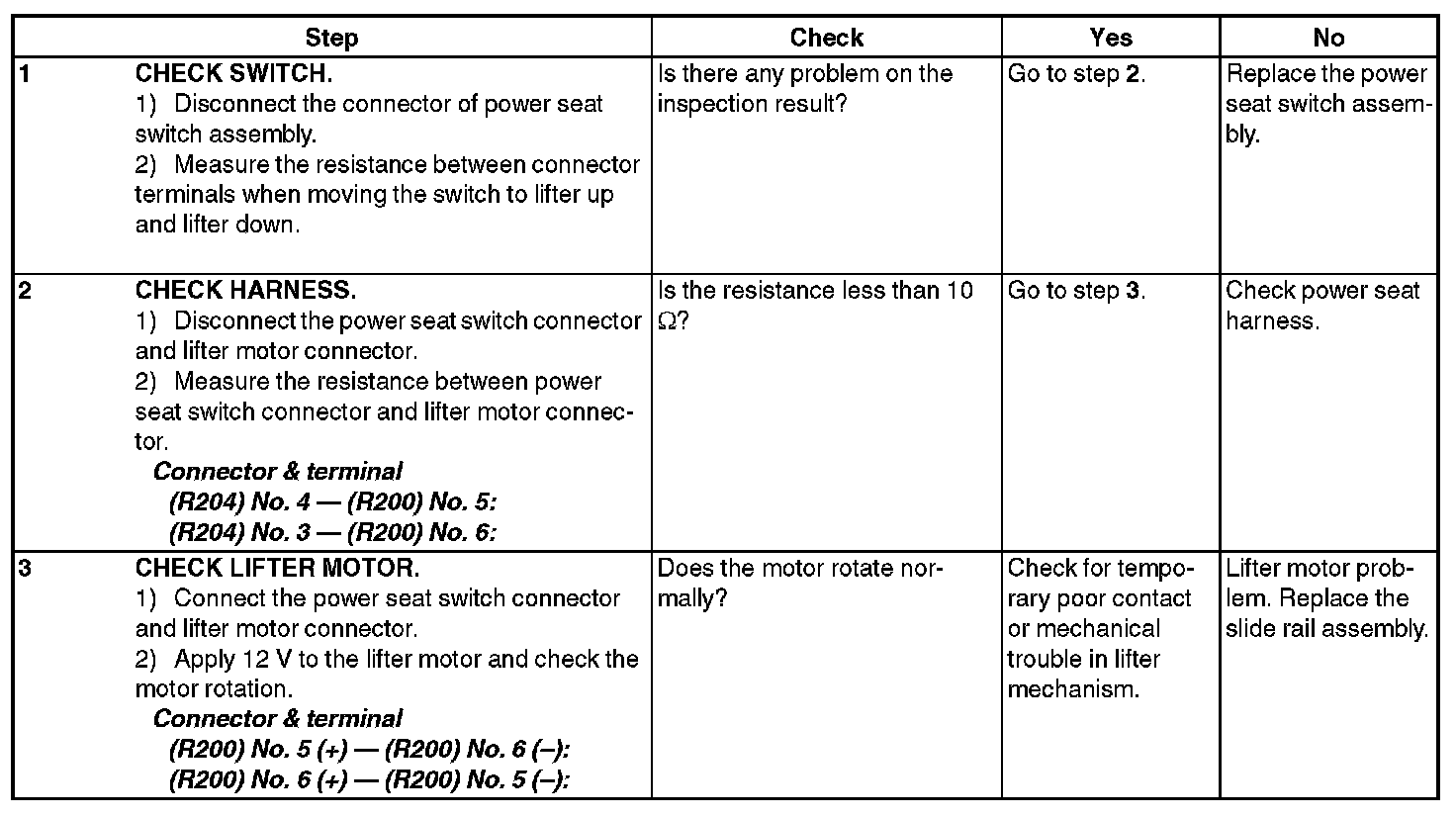

- Malfunction of lifter operation

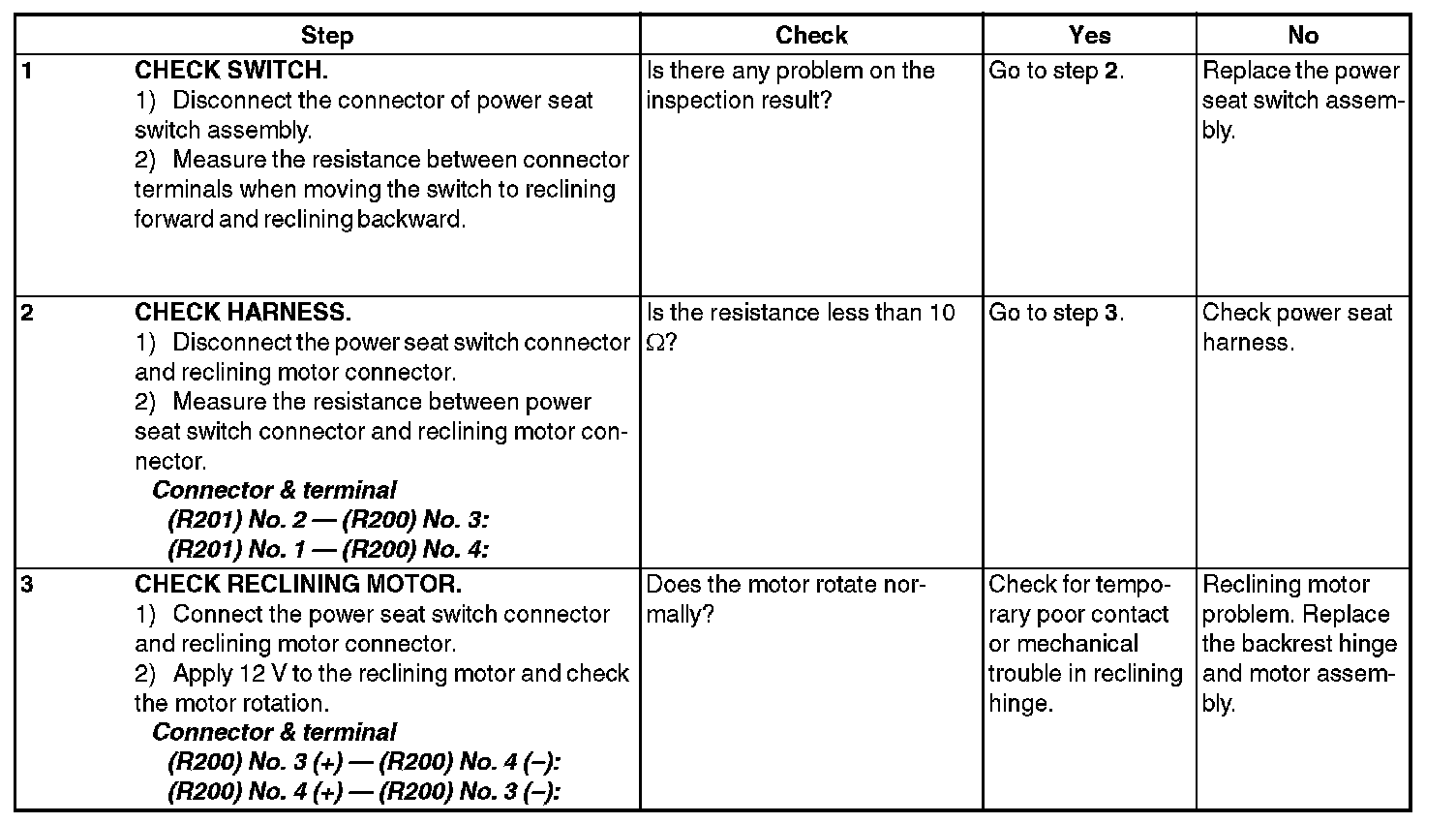

- Malfunction of reclining operation

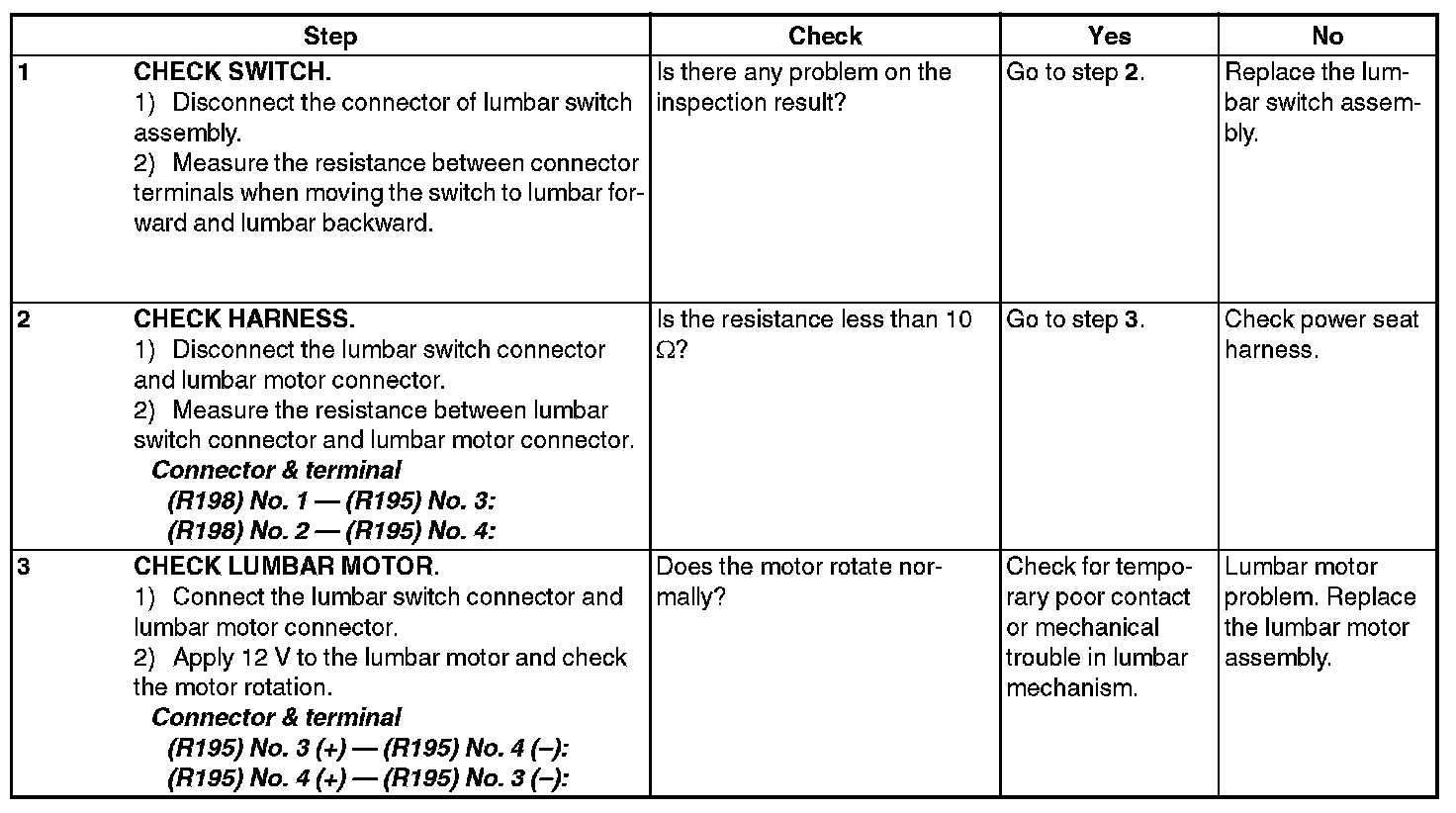

- Malfunction of lumbar operation
