Tailgate Latch: Service and Repair
REAR GATE LATCH AND ACTUATOR ASSEMBLYREMOVAL 1.
Disconnect the ground cable from battery.
2.
Remove the rear gate trim.
3.
Disconnect the harness connector of rear gate latch and actuator assembly.
4.

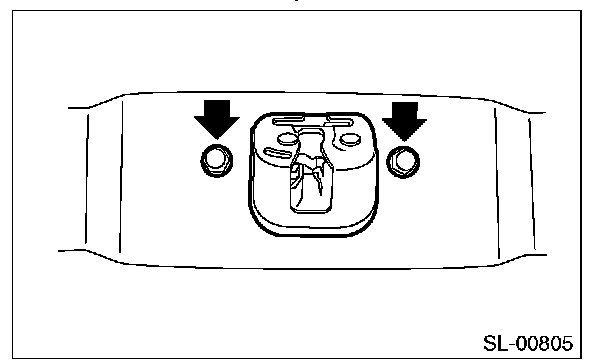

Remove the bolts, and remove the rear gate latch & actuator assembly.
INSTALLATIONInstall each part in the reverse order of removal.
Tightening torque: T: 25N.m (2.55 kgf-m, 18.4 ft-lb)
