Rear Sensor
Rear ABS Wheel Speed SensorREMOVAL
1) Disconnect the ground cable from battery.
2) Disconnect the connector from the rear ABS wheel speed sensor.

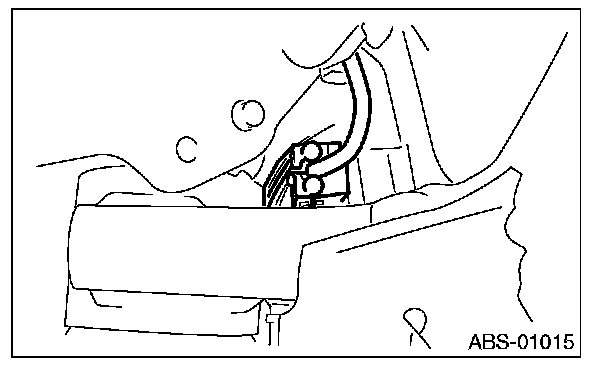

3) Remove the sensor harness clamp of the rear sub frame.
4) Remove the bolts and then remove the sensor harness bracket from the upper arm.
5) Remove the bolts, and remove the rear ABS wheel speed sensor from the rear axle.
CAUTION:
^ Be careful not to damage the sensor.
^ Do not apply excessive force to the sensor harness.
INSTALLATION
CAUTION:
Be careful not to damage the sensor.
Install each part in the reverse order of removal.
Tightening torque:
Sensor
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
Bracket
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
NOTE:
Check the identification (mark) on the harness to make sure there is no warpage. (RH: P3 (Aqua), LH: P4 (Brown))
INSPECTION
ABS WHEEL SPEED SENSOR
Refer to "INSPECTION" in "Front ABS Wheel Speed Sensor". Front Sensor
