Heat Shield: Service and Repair

Heat Shield Cover

REMOVAL

1. FRONT HEAT SHIELD COVER
1. Disconnect the ground cable from battery.
2. Disconnect the connector from oxygen (A/F) sensor.
- Turbo model
- Non-turbo model

3. Remove the exhaust pipe and muffler.
4. Remove the four bolts to remove the front heat shield cover.







2. CENTER HEAT SHIELD COVER
1. Remove the rear exhaust pipe and muffler.
2. Remove the propeller shaft. (Turbo model only)

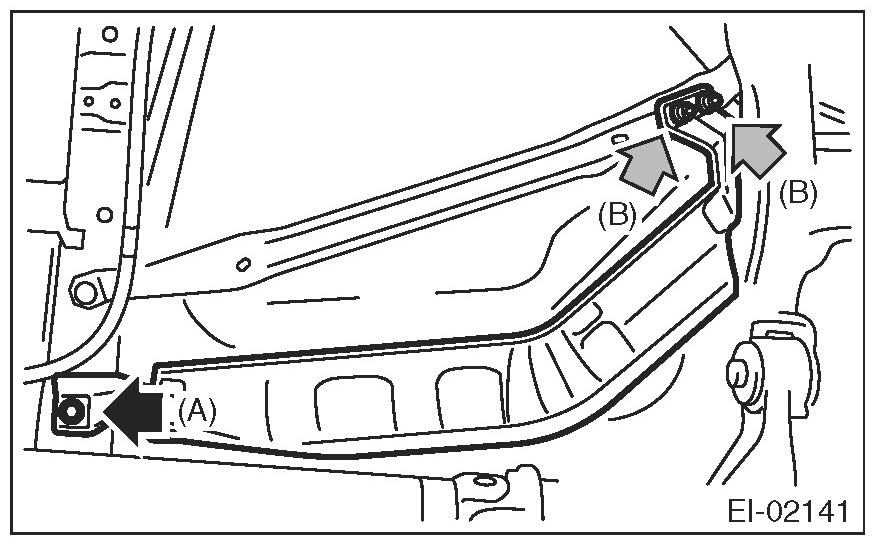

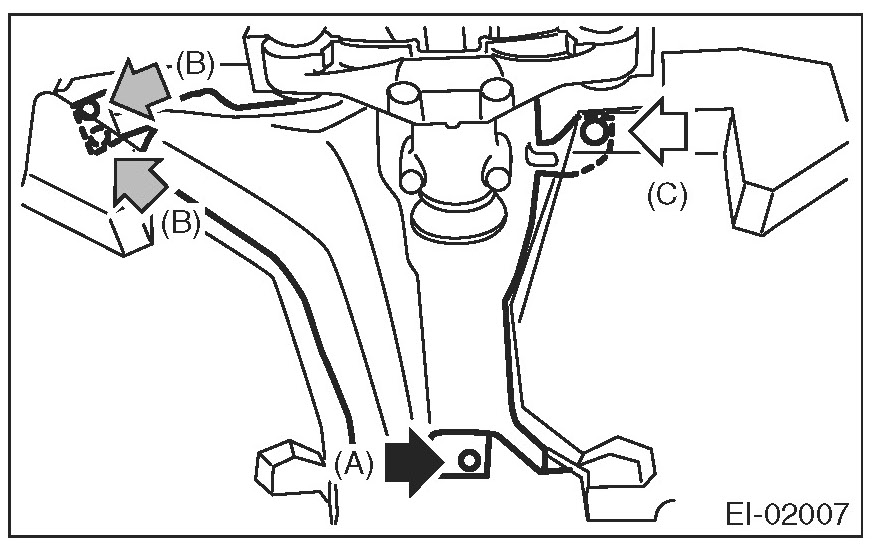

3. Remove the bolt (A), nut (B) and clip (C) to remove center heat shield cover.










3. REAR HEAT SHIELD COVER
1. Remove the rear exhaust pipe and muffler.
2. Remove the bolts, and remove the rear heat shield cover.







INSTALLATION

Install each part in the reverse order of removal.

Tightening torque:
Refer to "COMPONENT" of "General Description". [Ref. to HEAT SHIELD COVER, COMPONENT, General Description.]
